Electroplating Power Supply
>
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE ISO9001 |
| Model Number | GKD18-2500CVC |

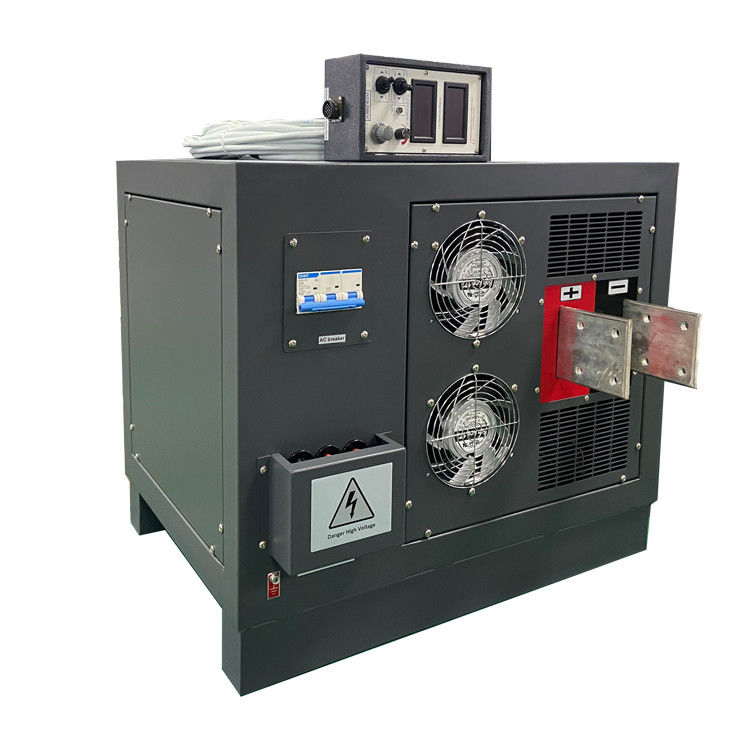

The 18V 2500A adjustable DC regulated power supply is designed to deliver precise and controlled direct current (DC) output for various applications. With an input voltage of 18 volts and a maximum output current of 2500 amperes, this power supply provides a robust power source capable of delivering up to 45 kilowatts (45,000 watts) of electrical power.
One of the key features of this power supply is its adjustable output voltage and current settings. Users have the flexibility to finely tune and set the desired output values to match the specific requirements of their application. This adjustability allows for precise control over the power supply, ensuring optimal performance and compatibility with a wide range of electronic devices, circuits, and systems.

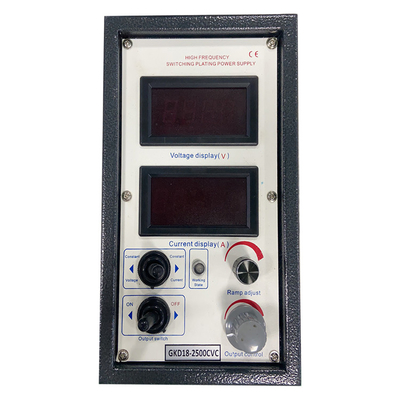

Equipped with a digital display, the power supply provides real-time feedback on the output voltage and current levels, enabling users to monitor the power supply's performance. Additionally, control knobs, buttons, or a keypad interface are included, allowing easy adjustment and fine-tuning of the output parameters.
To ensure stability and reliability, the 8V 500A adjustable DC regulated power supply employs sophisticated regulation mechanisms. It effectively minimizes voltage and current fluctuations, providing a consistent and reliable power source to connected devices or circuits.
The power supply also incorporates various protection features, including overvoltage protection (OVP), overcurrent protection (OCP), overtemperature protection (OTP), and short-circuit protection (SCP). These safeguards help prevent potential damage to the power supply and connected devices in case of abnormal operating conditions or unforeseen events.

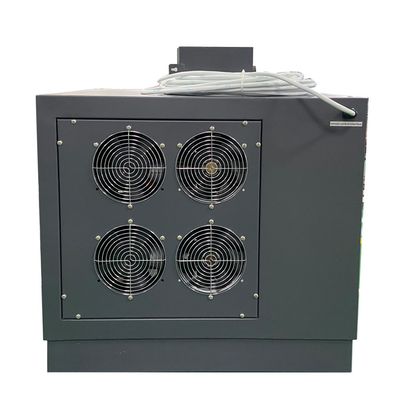

Designed with efficiency in mind, the power supply minimizes energy losses during the power conversion process, contributing to reduced energy consumption and optimized performance. It features the fan cooling system to dissipate heat generated during operation, ensuring reliable and prolonged use.
The 18V 2500A adjustable DC regulated power supply finds applications in a wide range of fields, including electronics testing, circuit prototyping, research and development, industrial processes, and educational environments. Its versatile nature and adjustable output capabilities make it an indispensable tool for powering and testing electronic components, circuits, and systems with precision and control.
GENRAL SEPCIFICATION electroplating rectifier 18v 2500a
| AC Input | voltage | 415v 3 phase |
| frequency | 50/60hz | |
| phase |
single phase : power <5kw three phase : power ≥5kw |
|
| output | current | 0~2500a optional |
| voltage | 6V/12V/15V/18V/24V/36V/50V optional or according to customers’ request | |
| frequency | 40khz | |
| effiencicy | ≥89% | |
| voltage stability | ≤1% | |
| current stability | ≤1% | |
| Stabilization mode | Current stabilization/Voltage stabilization (Switchable easily) | |
| adjustment range | Voltage/Current from 0-100% continuously adjustable within rated range | |
| control part | cooling system | air cooling /water cooling/mixed water & air cooling |
| control method | local panel control/remote control box/ PLC | |
| Display contents | Voltage meter/Current meter/Working/Over temp/Error, etc.. | |
| Protection method | Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc. | |
| use environment | Operating temperature | -20-50℃ |
| Ambient temperature | 30-65℃ | |
| Ambient humidity | ≤90% | |
| Working loading | Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
OPTIONAL FEATURE high frequency electroplating rectifier 18v 2500a
| Reduced Ripple | Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point |
| Polarity Reversing | manual reverse or automatic reverse |
| Digital Ampere-Hour / Minute Meter | achieve the current hour,current minute control,achieve the chemical solution automatically add |
| Computer analog Interface | 0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost |
| PLC +HMI control | RS 485,Profibus,Profinet international standard interface |
| multi-period Timer | Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle |
|
Cabinet: electroplating rectifier 18v 2500a Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting |
Structure: Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
|
Radiator: high frequency electroplating rectifier 18v 2500a radiator capacity expanded 1.5 times,make sure better cooling effect |
switch control way: electroplating rectifier 18v 2500a adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
|
Main transformer: high frequency electroplating rectifier 18v 2500a adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability |
Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
|
Board : high frequency electroplating rectifier 18v 2500a all control boards did anticorrosion treatment with imported three defense lacquer |
IGBT: electroplating rectifier 18v 2500a IGBT capacity expanded 3 times,make the power supply more reliable |
This product is characterized by its small size, light weight, and electricity-saving while maintaining high accuracy. It allows for customizable communication interfaces depending on the needs of the customer, and duration control can also be provided. Additionally, customers can also choose between a local control or remote control, and the length of the cable is also customizable. The reliable Japan IGBT or Germany IGBT are adopted for its production, and the innovative chassis also has excellent corrosion resistance after being phosphate, galvanized, and plastic sprayed. Not to mention, it is also easy to operate and repair.
Application field is very wide, such as industrial control, electronic power, electroplating, communication, scientific research, instrumentation, military industry, medical treatment, shipbuilding, railway and other high-tech fields.
In terms of motor category, it covers electric vehicle motors, electric vehicle controllers, DC motor testing, and so on.
As for electric appliances, it covers LED testing and aging, energy-saving bulb testing and aging, lamp testing, tungsten filament gasification, etc.
In the automotive field, its applications include, automotive electronics, DC motors, car motor controllers, car lights, cigarette lighters, car audio and video, etc.
In electronics industry, it can be used to test many electronic components, such as capacitors, resistors, relays, transistors, sensors, etc.
For display category, it covers display screen, liquid tank screen, touch screen, car DVD, mobile phone display, etc.
Moreover, it also can be utilized in electrochemical field, such as electrolysis, electroplating, anodizing, non-ferrous metal research, etc.
In conclusion, it has broad ranges of applications, include other areas of product testing and research and development that require DC power supply.
At Electroplating Power Supply, we take pride in providing our customers with the highest quality products, and we strive to ensure that our customers are completely satisfied with their purchase. That is why we offer comprehensive technical support and service to our customers.
If you experience any difficulties with your Electroplating Power Supply product, our customer service team is always available to help. We can provide technical assistance in troubleshooting, installation, and product use. Additionally, our experienced team can provide advice and guidance on product setup and maintenance.
We also offer a variety of warranty options to our customers. We offer a one-year limited warranty on all products, as well as a three-year extended warranty for additional coverage. Our warranty coverage is designed to protect our customers from any defect or malfunction that may occur during the product's lifetime.
At Electroplating Power Supply, our team is dedicated to providing exceptional customer service and technical support. If you have any questions or concerns about your product, please do not hesitate to reach out to us. We are always here to help!
Packaging and Shipping of Electroplating Power Supply
A1: The brand name of this electroplating power supply is Xingtongli.
A2: The model number of this electroplating power supply is GKD.
A3: This electroplating power supply is produced in China.
A4: The minimum order quantity for this electroplating power supply is 1pcs.
A5: The payment terms for this electroplating power supply are L/C, D/A, D/P, T/T, Western Union, MoneyGram.
