IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion

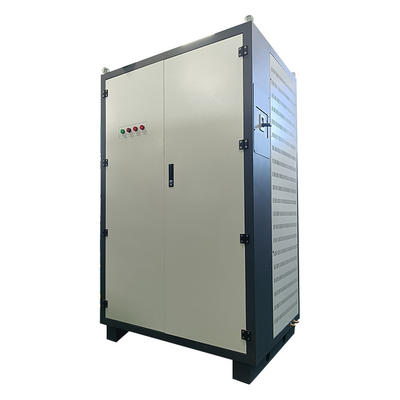

  • IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion

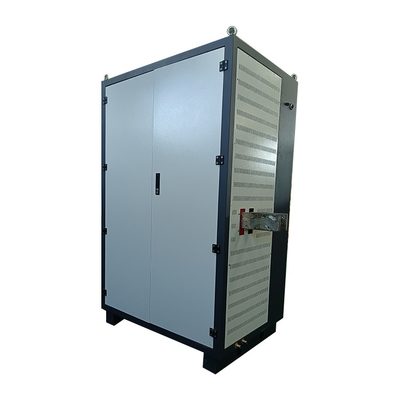

  • IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion

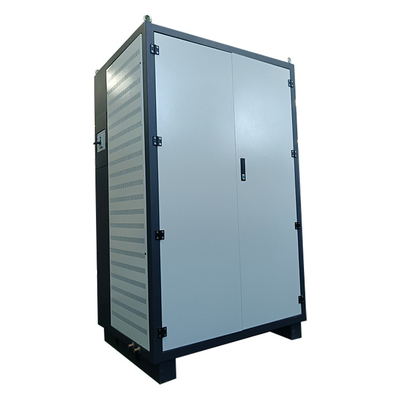

  • IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion

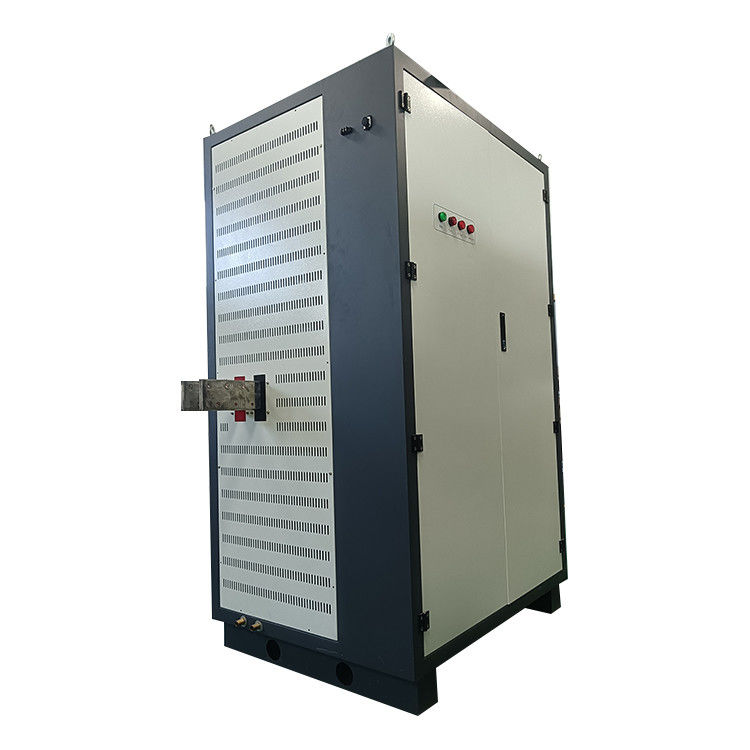

  • IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion

IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion

Place of Origin Sichuan, China
Brand Name XTL
Certification CE ISO9001
Model Number GKD400-300CVC
Product Details
Product Name:
IGBT Rectifier 400V 300A 120KW High Voltage DC Power Supply
Input Voltage:
AC Input 380V/415V/480V
Output Voltage:
0~400v
Output Current:
0~300A
Output Power:
120KW
Certification:
CE, ISO9001
Protections:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
Warranty:
1 Year
Application:
Electroplating , Factory Use, Testing &Aging Of Electronic Components
MOQ:
1pcs
Size:
105*65*170cm
High Light:

120KW DC Power Supply

,

IGBT Rectifier DC Power Supply

,

Anti Corrosion Electroplating Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
8500-10000$/unit
Packaging Details
strong plywood standard exporting package
Delivery Time
5-30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
500 Set/Sets per Month
Product Description

Product Description:

IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion 0IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion 1IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion 2IGBT Rectifier 400V 300A 120KW DC Power Supply Nickel Hard Chrome Gold Anti Corrosion 3

Product Name
IGBT Rectifier 400V 300A 120KW High Voltage DC Power Supply Nickel Hard Chrome Gold Anti-corrosion Electroplating Rectifier
AC Input (V)
Input Voltage
AC 380V/415V/480V/220v±10% /110V Single
Frequency
50Hz/60Hz±10%



DC Output (V)
Output Power
120kw
Output Current
0~300A digital display, Continuously adjustable
Output Voltage
0~400V digital display, Continuously adjustable
Ripple
≤0.5%
Output Efficiency
≥90%

Display Accuracy
Current
0.01A
Voltage
0.01V
Load Regulation
≤±1% FS

Control Accuracy
Constant Current Accuracy
≤0.01A
Constant Voltage Accuracy
≤0.01V


Protection
Output Protection
Output overcurrent, overvoltage, overload protection
Short Circuit Protection
Use reduction of voltage, limit current flow
Overheating Protection
≥ 75 ℃, automatic protection
Environment Temperature
-10℃~+50℃
Cooling
Water Cooling
Control Mode
Remote


Optional Functions
Ramp up
Ramp Down
Soft Start
Remote
Provide RS485, RS232, CAN, LAN, GPIB, USD-TMC, USB-VCP, external analog, IO and other control methods

Features:

120KW High Efficiency High Power Lab DC Power Supply Built-in beeper alarm No overshoot during startup Support ModBus-RTU commands Digit touch screen display for voltage and current Multiple programming interfaces: RS232, RS485 Multiple protections: OVP, OTP, UVP and current limit protections Constant voltage and constant current operations, auto CV/CC switch Front panel operation: preset voltage and current, output ON/OFF Customized specifications and functions acceptable Application1: Laboratory, Factory Use, Testing &Aging of Electronic Components

Application2: Motor & Controller Test Battery and Capacitance Charging Equipment


Applications:

PCB and Semiconductors The technology shift from DC to pulse will have a massive impact on your productivity and profitability. New demands on PCB and Semiconductor manufacturing require precise technology. Hydrogen Production As DC power specialists, we work with you to define and implement the most efficient, reliable and economical electrical eco-system to optimise hydrogen generation, reduce the total cost of operation and the investment needed. Electrostatic Precipitators (ESPs) Industries that create air pollution in terms of particulate matter (PM), need to keep up with ever-increasing emission requirements. With our unique solutions, based on power supply upgrades, you can breathe new life into your electrostatic precipitator. General Metal Finishing Reducing your total cost of operation while meeting your output quality and uptime targets. Marine With a rectifier integrated into your ballast water management system, you are always in safe hands. The reliability and performance of our rectifiers are the product of our long maritime experience, commitment to quality, and relentless pursuit of innovation. Uninterruptible Power Systems When critical processes simply has to work and full availability is required, we have the solution for you. Our systems within uninterruptible power supply eliminates dangerous down time and secure critical functions.



Support and Services:

Electroplating Power Supply

Technical Support and Service

Our technical support and service team is available to provide assistance with any problems or questions related to our Electroplating Power Supply products.

We provide phone, email and online support to our customers. Our team of experts is available to answer questions and provide troubleshooting advice.

We also offer on-site service and repair in the event that the product needs to be serviced or repaired. In addition, we offer extended warranty plans to cover any unexpected repairs or replacements needed.

If you have any questions or need any assistance, please don’t hesitate to contact us.



Packing and Shipping:



Packaging and Shipping
  • The Electroplating Power Supply is shipped to customers in a cardboard box.
  • The box is marked with the product name, weight, and dimensions.
  • The Electroplating Power Supply is securely packed and cushioned with foam.
  • The package is sealed shut with strong adhesive tape.
  • The package is then sent to the customer through a reliable shipping carrier.



FAQ:



Q1: What is the Brand Name of this Electroplating Power Supply?

A1: The Brand Name of this Electroplating Power Supply is Xingtongli.

Q2: What is the Model Number of this Electroplating Power Supply?

A2: The Model Number of this Electroplating Power Supply is GKD.

Q3: Where is the Place of Origin for this Electroplating Power Supply?

A3: The Place of Origin for this Electroplating Power Supply is China.

Q4: What Certifications does this Electroplating Power Supply have?

A4: This Electroplating Power Supply has CE and ISO9001 Certifications.

Q5: What are the Payment Terms for this Electroplating Power Supply?

A5: The Payment Terms for this Electroplating Power Supply are L/C, D/A, D/P, T/T, Western Union, MoneyGram.

electroplating , Factory Use, Testing &Aging of Electronic Components
