Electroplating Power Supply
>
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE ISO9001 |
| Model Number | GKD12-1500CVC |
High frequency dc electroplating rectifier widely used in
• Plating: Chrome, hard Chrome, Zinc, Nickel, Copper, Gold, Silver
• Electrolysis: Copper, Zinc, Tin, Lead • Aluminum foil, copper foil production
• Electrochemical machining • Anodizing: anodizing, hard anodizing
• Waste water treatment • Other DC Power Supply application field
• Recovery of Copper, Cobalt, Nickel, Cadmium, Zinc • and Bismuth from Electrolytic Copper Solution
GENRAL SEPCIFICATION electroplating rectifier 12v 1500a
| AC Input | voltage | 415v 3 phase |
| frequency | 50/60hz | |
| phase |
single phase : power <5kw three phase : power ≥5kw |
|
| output | current | 0~1500a optional |
| voltage | 6V/12V/15V/18V/24V/36V/50V optional or according to customers’ request | |
| frequency | 40khz | |
| effiencicy | ≥89% | |
| voltage stability | ≤1% | |
| current stability | ≤1% | |
| Stabilization mode | Current stabilization/Voltage stabilization (Switchable easily) | |
| adjustment range | Voltage/Current from 0-100% continuously adjustable within rated range | |
| control part | cooling system | air cooling /water cooling/mixed water & air cooling |

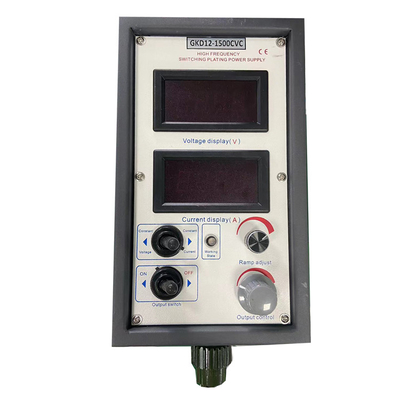

| control method | local panel control/remote control box/ PLC | |
| Display contents | Voltage meter/Current meter/Working/Over temp/Error, etc.. | |
| Protection method | Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc. | |
| use environment | Operating temperature | -20-50℃ |
| Ambient temperature | 30-65℃ | |
| Ambient humidity | ≤90% | |
| Working loading | Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
OPTIONAL FEATURE high frequency electroplating rectifier 12v 1500a
| Reduced Ripple | Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point |
| Polarity Reversing | manual reverse or automatic reverse |
| Digital Ampere-Hour / Minute Meter | achieve the current hour,current minute control,achieve the chemical solution automatically add |
| Computer analog Interface | 0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost |
| PLC +HMI control | RS 485,Profibus,Profinet international standard interface |
| multi-period Timer | Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle |
|
Cabinet: electroplating rectifier 12v 1500a Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting |
Structure: Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
|
Radiator: high frequency electroplating rectifier 12v 1500a radiator capacity expanded 1.5 times,make sure better cooling effect |
switch control way: electroplating rectifier 12v 1500a adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
|
Main transformer: high frequency electroplating rectifier 12v 1500a adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability |
Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
|
Board : high frequency electroplating rectifier 12v 1500a all control boards did anticorrosion treatment with imported three defense lacquer |
IGBT: electroplating rectifier 12v 1500a IGBT capacity expanded 3 times,make the power supply more reliable |
1. Input: 380V/415V/480V/220v±10% /110V Single
2. Cooling Method: Forced air cooling
3. Control System: Microcontroller + digital display Screen
4. Ripple: ≤1%
5. Local Control
Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
