24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier
  • 24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier
  • 24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier
  • 24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier
  • 24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier

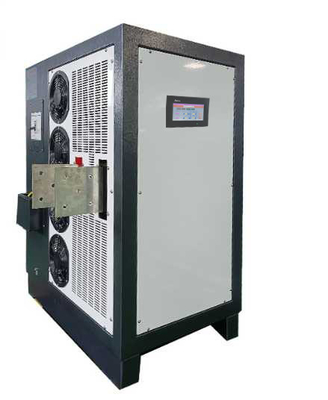

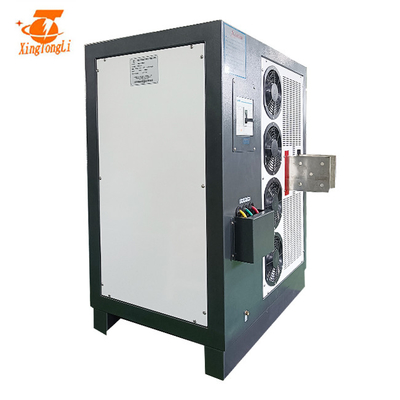

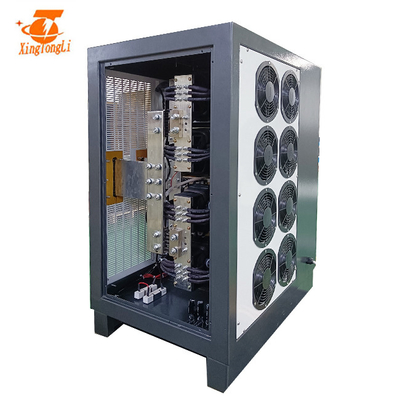

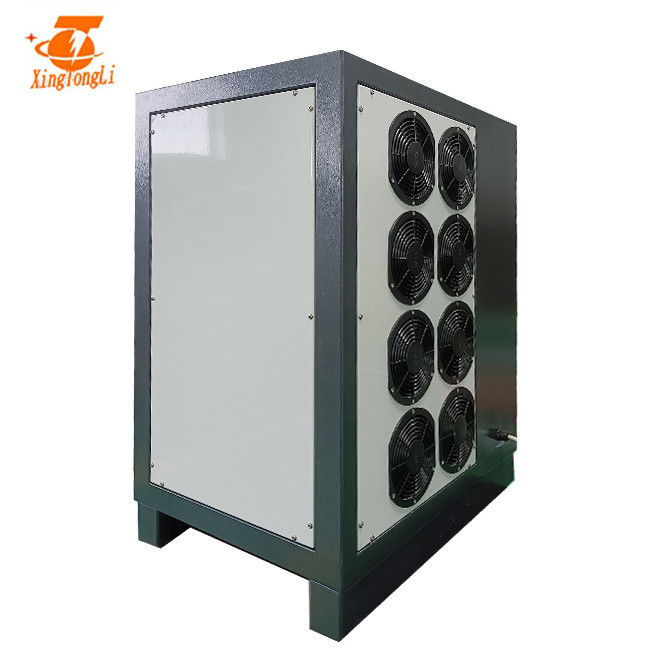

24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier

Place of Origin Sichuan, China
Brand Name XTL
Certification CE ISO9001
Model Number GKD24-6000CVC
Product Details
Product Name:
24v 6000a Anodizing Rectifier
Input Voltage:
AC Input 415V 3 Phase
Output Voltage:
0~24V
Output Current:
0~6000A
Output Frequency:
20KHZ
Color:
Grey
Cooling:
Forced Air Cooling
Size:
800*800*1900
Weight:
500kg
Application:
Laboratory Electroplating Testing
Protections:
Short Circuit Overtemp Overload Overvolt
Certification:
CE, ISO9001
Warranty:
12months
Interface:
RS232, RS485
Highlight:

Aluminum Titanium Anodizing Rectifier

,

Aluminum Titanium Plating Rectifier

,

24v 6000a Plating Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
7000-12000$/unit
Packaging Details
strong plywood standard exporting package
Delivery Time
5-30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 Set/Sets per Month
Product Description

Product Introduction

Anodized power pins are designed for oxidation characteristics. Because its output waveform is a square wave, it is more beneficial to the sealing quality. It reduces the dissolution of the film caused by the increase in temperature, prevents the expansion of the oxide film pores, is conducive to improving the hardness and density of the oxide layer, and is conducive to improving the product. Quality and yield.


Technical Data Sheet

GENRAL SEPCIFICATION electroplating rectifier 24v 6000a

AC Input voltage 415v 3 phase
frequency 50/60hz
phase

single phase : power <5kw

three phase : power ≥5kw

output current 0~6000a optional
voltage 6V/12V/15V/18V/24V/36V/50V optional or according to customers’ request
frequency 40khz
effiencicy ≥89%
voltage stability ≤1%
current stability ≤1%
Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
control part cooling system air cooling /water cooling/mixed water & air cooling
control method local panel control/remote control box/ PLC
Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
Protection method Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
use environment Operating temperature -20-50℃
Ambient temperature 30-65℃
Ambient humidity ≤90%
Working loading Full capacity operation, more than 1,000 meters above sea level, reduced load operation





OPTIONAL FEATURE high frequency electroplating rectifier 24v 6000a



Reduced Ripple Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point
Polarity Reversing manual reverse or automatic reverse
Digital Ampere-Hour / Minute Meter achieve the current hour,current minute control,achieve the chemical solution automatically add
Computer analog Interface 0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost
PLC +HMI control RS 485,Profibus,Profinet international standard interface
multi-period Timer Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle



Cabinet:

electroplating rectifier 24v 6000a Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

high frequency electroplating rectifier 24v 6000aradiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

electroplating rectifier 24v 6000a adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

high frequency electroplating rectifier 24v 6000a adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

high frequency electroplating rectifier 24v 6000a all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

electroplating rectifier 24v 6000a IGBT capacity expanded 3 times,make the power supply more reliable



FEATURE

1. Input: 380V/415V/480V/220v±10% /110V Single

2. Cooling Method: Forced air cooling

3. Control System: Microcontroller + digital display Screen

4. Ripple: ≤1%

5. Local Control



APPLICATION

  1. PCB and Semiconductors The technology shift from DC to pulse will have a massive impact on your productivity and profitability. New demands on PCB and Semiconductor manufacturing require precise technology.
  2. Hydrogen Production As DC power specialists, we work with you to define and implement the most efficient, reliable and economical electrical eco-system to optimise hydrogen generation, reduce the total cost of operation and the investment needed.
  3. Electrostatic Precipitators (ESPs) Industries that create air pollution in terms of particulate matter (PM), need to keep up with ever-increasing emission requirements. With our unique solutions, based on power supply upgrades, you can breathe new life into your electrostatic precipitator.
  4. General Metal Finishing Reducing your total cost of operation while meeting your output quality and uptime targets.
  5. Marine With a rectifier integrated into your ballast water management system, you are always in safe hands. The reliability and performance of our rectifiers are the product of our long maritime experience, commitment to quality, and relentless pursuit of innovation.
  6. Uninterruptible Power Systems When critical processes simply has to work and full availability is required, we have the solution for you. Our systems within uninterruptible power supply eliminates dangerous down time and secure critical functions.

24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier 0



Certifications

24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier 1

Our factory

24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier 2

Packaging & Shipping

Our factory has a strict standards for electroplating rectifier 24v 6000a package we adopt plywood case package with free-fumigation package featuring water-proof, anti collision, good fixation, which will be strong and durable during transportation . We can also pack high frequency electroplating rectifier 24v 6000a according to clients' special requirements.



24v 6000a Aluminum Titanium Anodizing Rectifier Plating Rectifier 3



Complete pre & after service for high frequency dc rectifier electroplating 24v 6000a

Pre-Sales Service

* Inquiry and consulting support within 12 hours.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the electroplating rectifier 24v 6000a



* Engineers available to service machinery overseas.



FAQ

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
