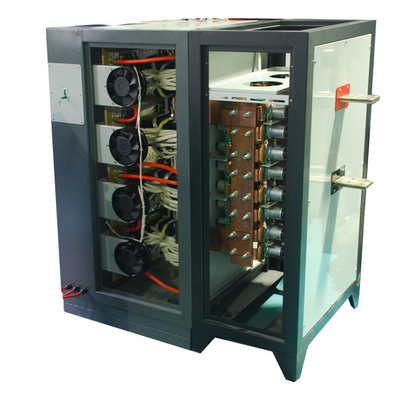

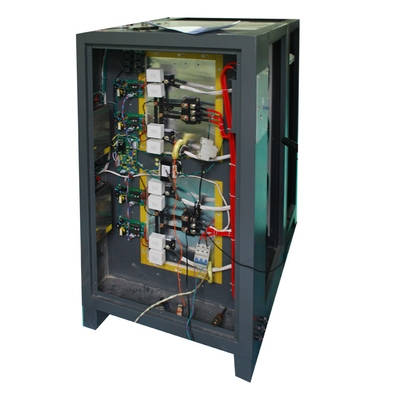

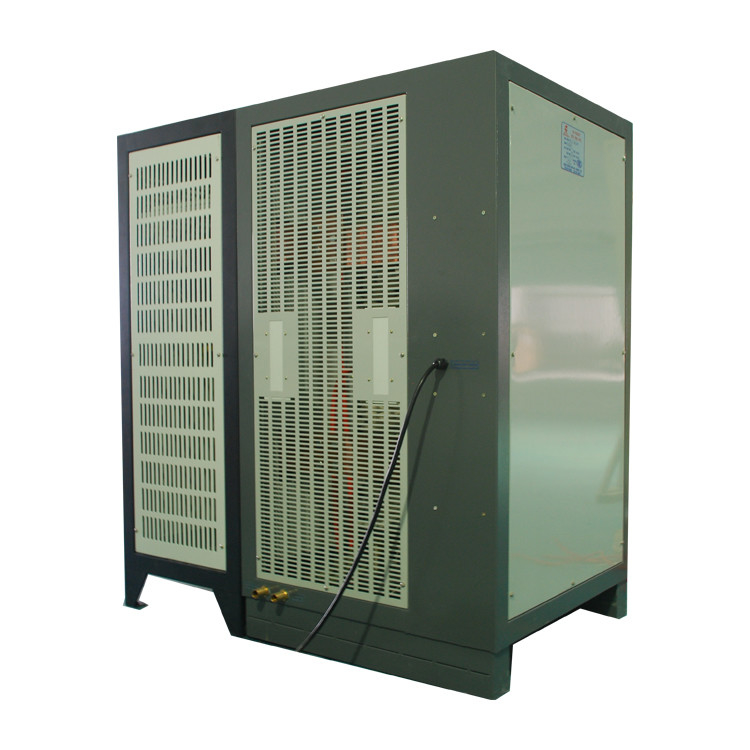

15V 5000A 75KW Adjustable DC Power Supply Electroplating Rectifier
  • 15V 5000A 75KW Adjustable DC Power Supply Electroplating Rectifier
  • 15V 5000A 75KW Adjustable DC Power Supply Electroplating Rectifier
  • 15V 5000A 75KW Adjustable DC Power Supply Electroplating Rectifier

15V 5000A 75KW Adjustable DC Power Supply Electroplating Rectifier

Place of Origin China
Brand Name Xingtongli
Certification CE ISO9001
Model Number GKD15-5000CVC
Product Details
Name:
DC Power Supply Electroplating Rectifier
Place Of Origin:
Sichuan, China
Brand Name:
XTL
Input Voltage:
380V/415V/480V/220v±10% /110V Single
Output Voltage:
0~15V
Output Current:
0~5000A
Switching Frequency:
20KHZ
Size:
75*72*66cm
Type:
AC/DC
Application:
Electroplating, Testing, Lab
Operation Type:
Local/remote/PLC
Warranty:
12months
Efficiency:
85%
Cooling Way:
Air Cooling
Voltage Overshoot:
No Overshoot, No Voltage Peak
Environment Temperature:
-10℃~+50℃
High Light:

75KW Adjustable DC Power Supply

,

5000A DC Power Supply

,

15V DC Electroplating Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
4700-5500$/unit
Packaging Details
strong plywood standard exporting package
Delivery Time
5-30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 Set/Sets per Month
Product Description

Product Description:



One of the key features of this power supply is its adjustable output voltage and current settings. Users have the flexibility to finely tune and set the desired output values to match the specific requirements of their application. This adjustability allows for precise control over the power supply, ensuring optimal performance and compatibility with a wide range of electronic devices, circuits, and systems.

Equipped with a digital display, the power supply provides real-time feedback on the output voltage and current levels, enabling users to monitor the power supply's performance. Additionally, control knobs, buttons, or a keypad interface are included, allowing easy adjustment and fine-tuning of the output parameters.

To ensure stability and reliability, the 15V 5000A adjustable DC regulated power supply employs sophisticated regulation mechanisms. It effectively minimizes voltage and current fluctuations, providing a consistent and reliable power source to connected devices or circuits.

The power supply also incorporates various protection features, including overvoltage protection (OVP), overcurrent protection (OCP), overtemperature protection (OTP), and short-circuit protection (SCP). These safeguards help prevent potential damage to the power supply and connected devices in case of abnormal operating conditions or unforeseen events.

Designed with efficiency in mind, the power supply minimizes energy losses during the power conversion process, contributing to reduced energy consumption and optimized performance. It features the fan cooling system to dissipate heat generated during operation, ensuring reliable and prolonged use.

The 15V 5000A adjustable DC regulated power supply finds applications in a wide range of fields, including electronics testing, circuit prototyping, research and development, industrial processes, and educational environments. Its versatile nature and adjustable output capabilities make it an indispensable tool for powering and testing electronic components, circuits, and systems with precision and control.



Technical Data Sheet



GENRAL SEPCIFICATION electroplating rectifier 15v 5000a

AC Input voltage 380V/415V/480V/220v±10% /110V Single
frequency 50/60hz
phase

single phase : power <5kw

three phase : power ≥5kw

output current 0~5000a optional
voltage 6V/12V/15V/18V/24V/36V/50V optional or according to customers’ request
frequency 40khz
effiencicy ≥89%
voltage stability ≤1%
current stability ≤1%
Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
control part cooling system air cooling /water cooling/mixed water & air cooling
control method local panel control/remote control box/ PLC
Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
Protection method Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
use environment Operating temperature -20-50℃
Ambient temperature 30-65℃
Ambient humidity ≤90%
Working loading Full capacity operation, more than 1,000 meters above sea level, reduced load operation





OPTIONAL FEATURE high frequency electroplating rectifier 15v 5000a



Reduced Ripple Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point
Polarity Reversing manual reverse or automatic reverse
Digital Ampere-Hour / Minute Meter achieve the current hour,current minute control,achieve the chemical solution automatically add
Computer analog Interface 0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost
PLC +HMI control RS 485,Profibus,Profinet international standard interface
multi-period Timer Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle



Cabinet:

electroplating rectifier 15v 5000a Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

high frequency electroplating rectifier 15v 5000a radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

electroplating rectifier 15v 5000a adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

high frequency electroplating rectifier 15v 5000a adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

high frequency electroplating rectifier 15v 5000a all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

electroplating rectifier 15v 5000a IGBT capacity expanded 3 times,make the power supply more reliable





Features:



This product is characterized by its small size, light weight, and electricity-saving while maintaining high accuracy. It allows for customizable communication interfaces depending on the needs of the customer, and duration control can also be provided. Additionally, customers can also choose between a local control or remote control, and the length of the cable is also customizable. The reliable Japan IGBT or Germany IGBT are adopted for its production, and the innovative chassis also has excellent corrosion resistance after being phosphate, galvanized, and plastic sprayed. Not to mention, it is also easy to operate and repair.



Applications:



Application field is very wide, such as industrial control, electronic power, electroplating, communication, scientific research, instrumentation, military industry, medical treatment, shipbuilding, railway and other high-tech fields.

In terms of motor category, it covers electric vehicle motors, electric vehicle controllers, DC motor testing, and so on.

As for electric appliances, it covers LED testing and aging, energy-saving bulb testing and aging, lamp testing, tungsten filament gasification, etc.

In the automotive field, its applications include, automotive electronics, DC motors, car motor controllers, car lights, cigarette lighters, car audio and video, etc.

In electronics industry, it can be used to test many electronic components, such as capacitors, resistors, relays, transistors, sensors, etc.

For display category, it covers display screen, liquid tank screen, touch screen, car DVD, mobile phone display, etc.

Moreover, it also can be utilized in electrochemical field, such as electrolysis, electroplating, anodizing, non-ferrous metal research, etc.

In conclusion, it has broad ranges of applications, include other areas of product testing and research and development that require DC power supply.



Support and Services:



Electroplating Power Supply Technical Support and Service

At Electroplating Power Supply, we take pride in providing our customers with the highest quality products, and we strive to ensure that our customers are completely satisfied with their purchase. That is why we offer comprehensive technical support and service to our customers.

If you experience any difficulties with your Electroplating Power Supply product, our customer service team is always available to help. We can provide technical assistance in troubleshooting, installation, and product use. Additionally, our experienced team can provide advice and guidance on product setup and maintenance.

We also offer a variety of warranty options to our customers. We offer a one-year limited warranty on all products, as well as a three-year extended warranty for additional coverage. Our warranty coverage is designed to protect our customers from any defect or malfunction that may occur during the product's lifetime.

At Electroplating Power Supply, our team is dedicated to providing exceptional customer service and technical support. If you have any questions or concerns about your product, please do not hesitate to reach out to us. We are always here to help!



Packing and Shipping:



Packaging and Shipping of Electroplating Power Supply

  • All Electroplating Power Supply products will be carefully packed in a single cardboard box.
  • The contents of the box will include the Electroplating Power Supply unit, power cord, and user manual.
  • The box will be wrapped in plastic for extra protection.
  • The box will be shipped via air freight.


FAQ:



Q1: What is the brand name of this electroplating power supply?

A1: The brand name of this electroplating power supply is Xingtongli.

Q2: What is the model number of this electroplating power supply?

A2: The model number of this electroplating power supply is GKD.

Q3: Where is this electroplating power supply produced?

A3: This electroplating power supply is produced in China.

Q4: What is the minimum order quantity for this electroplating power supply?

A4: The minimum order quantity for this electroplating power supply is 1pcs.

Q5: What are the payment terms for this electroplating power supply?

A5: The payment terms for this electroplating power supply are L/C, D/A, D/P, T/T, Western Union, MoneyGram.
