24V 4000A High-Frequency Electroplating Rectifier Industrial DC Power Supply

All Category

Electrocoagulation Power Supply

High Frequency Switching Power Supply

24V 4000A High-Frequency Electroplating Rectifier Industrial DC Power Supply

Brand Name:	Xingtongli
Model Number:	GKD24-4000CVC
MOQ:	1pcs
Price:	6500-7900$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Product Description

The 24V 4000A High-Frequency Electroplating Rectifier is an industrial-grade DC power supply designed for precision electroplating, electrolytic metallurgy, and PCB manufacturing. Featuring a three-phase 440V AC input and advanced IGBT high-frequency switching technology, it delivers adjustable 0-24V/0-4000A DC output, ensuring uniform metal deposition for applications such as copper/nickel plating, hard chrome coating, and more.

Key Features

High Efficiency & Energy Savings

Utilizes LLC resonant soft-switching technology, achieving ≥89% efficiency (20%+ more efficient than traditional SCR rectifiers).
Ultra-low ripple (≤0.5%) prevents granular or rough plating surfaces.

Industrial Reliability

Forced air cooling (IP54-rated) with dual ball-bearing fans and smart temperature control, supporting full-load operation at 40°C ambient.
Comprehensive protections: Over-voltage, over-current, short-circuit, phase-loss, and overheating safeguards.
Smart Control

Local touchscreen + remote RS485/0-10V control, compatible with PLC automation. Supports multi-unit parallel operation (up to 8000A+).

Certifications & Safety

Compliant with CE, ISO 9001, and RoHS standards.

Technical Specifications

Parameter	Specification
Input Voltage	440V AC 3-phase ±10% (50/60Hz auto-sensing)
Output Voltage	0-24V DC adjustable (±0.5% accuracy)
Output Current	0-4000A DC adjustable (±1A resolution)
Max. Output Power	96KW (24V × 4000A)
Cooling Method	Forced air cooling (noise ≤65dB)
Protection Functions	OVP/OCP/SCP/phase-loss/overheat protection
Dimensions (W×H×D)	5808081140mm
Weight	209.5kg
Operating Conditions	-10°C to +50°C, ≤95% RH (non-condensing)

Typical Applications

PCB Manufacturing: Via filling, gold finger plating (batch production at 4000A).
Metal Finishing: Hard chrome plating for automotive parts, nickel plating for sanitary ware.
Electrolytic Metallurgy: Copper foil electrolysis, rare metal extraction.
R&D Labs: High-precision electroplating process testing.

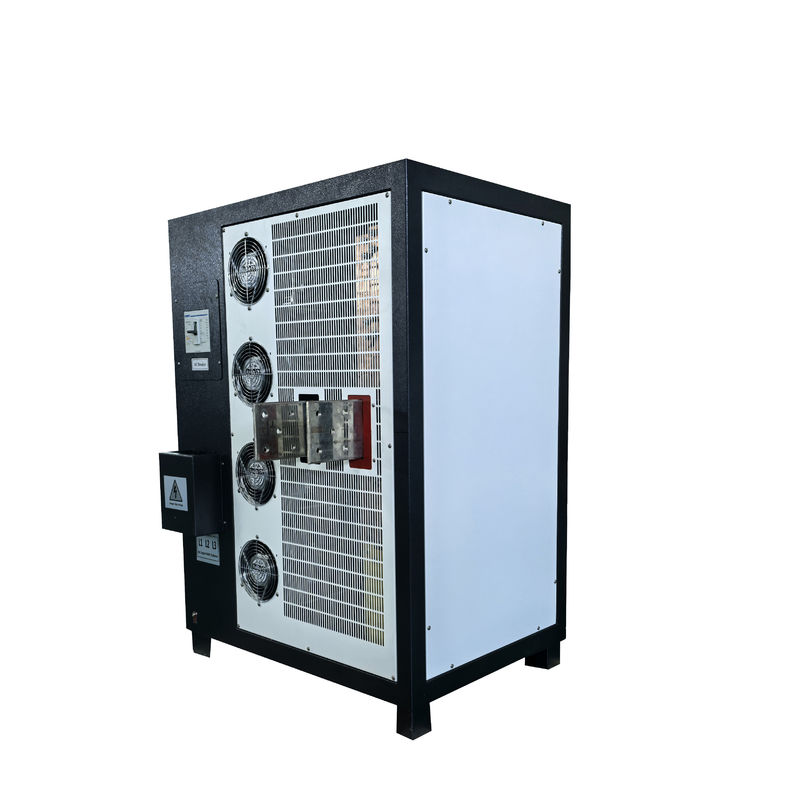

24V 4000A High-Frequency Electroplating Rectifier Industrial DC Power Supply 0

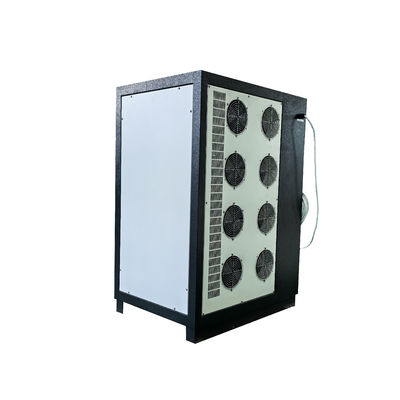

24V 4000A High-Frequency Electroplating Rectifier Industrial DC Power Supply 1
