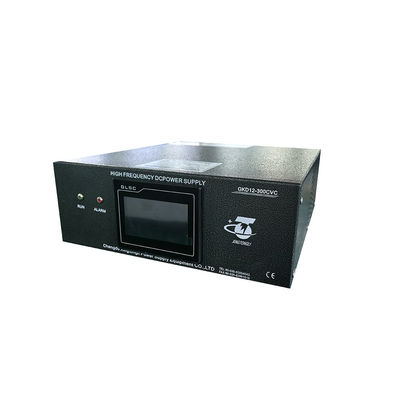

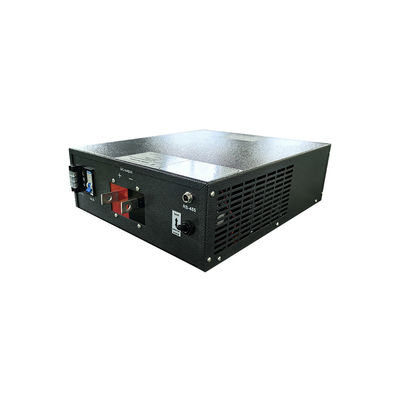

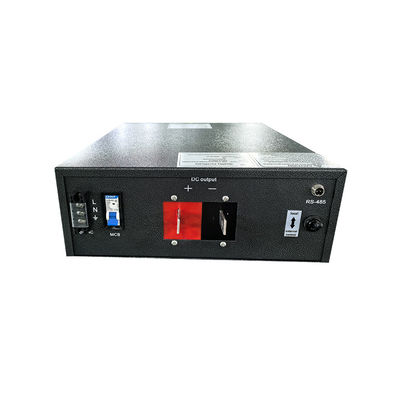

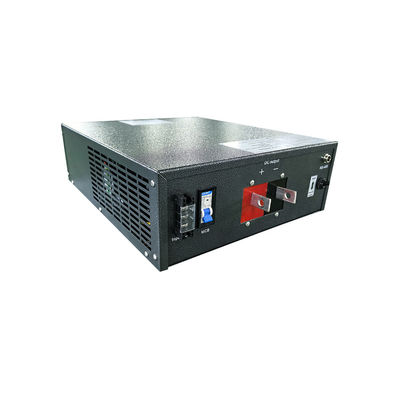

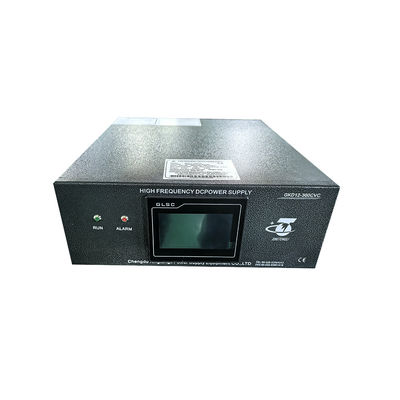

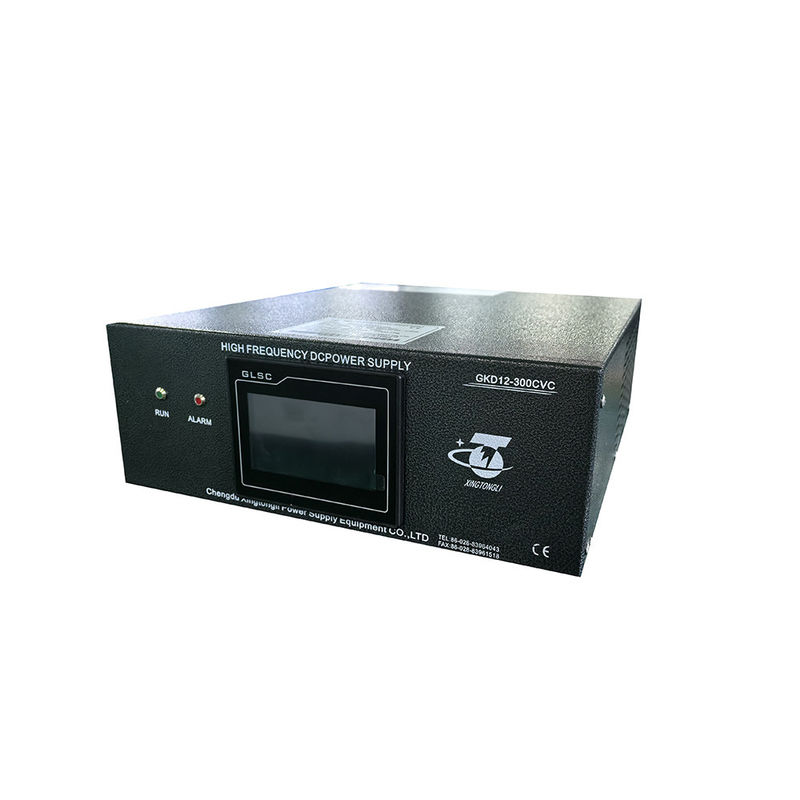

High Frequency LGBT Single Phase 12V 300A DC Power Supply For Plating Rectifier
  • name
  • name
  • name
  • name
  • name

High Frequency LGBT Single Phase 12V 300A DC Power Supply For Plating Rectifier

MOQ: 1ps
Price: 500-600$/unit
Packaging Details: strong plywood standard exporting package
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Supply Ability:
200 Set/Sets per Month
Highlight:

12V 300A DC Power Supply

,

Plating Rectifier DC Power Supply

,

High Frequency DC Power Supply

Product Description

The 12V 300A high-frequency electroplating rectifier is a DC power supply device specially designed for precision electroplating, laboratory research and development, and small-scale industrial production. It adopts 220V single-phase AC input, is compatible with the standard mains power, and has an output of 0-12V/0-300A that is continuously adjustable, ensuring that the electroplated layer is uniform and dense. It is suitable for high-precision processes such as gold plating, silver plating, and copper filling in PCB through-holes.

Core Features
High Efficiency and Energy Saving
It adopts high-frequency IGBT technology with a conversion efficiency of ≥90%, which is more than 15% more energy-efficient than traditional silicon rectifiers.
It has an ultra-low ripple (≤1%) to avoid rough or nodular plating layers and improve the surface finish.

Intelligent Control

It has local touch screen control + RS485 remote communication, supports PLC automation integration, and is suitable for intelligent production lines.

The single-chip microcomputer enables precise adjustment with a voltage/current accuracy of ±0.5%.

Industrial-Grade Reliability

It has a forced air-cooling system (with IP21 protection), intelligent temperature-controlled speed regulation, and can support full-load operation in an environment of 40°C.
It has multiple protections: overvoltage (OVP), overcurrent (OCP), short circuit (SCP), and overheating (OTP) protections are all available.


Technical Parameters
Parameters Specifications
Input voltage AC 220V ±10% (single-phase, 50/60Hz self-adaptive)
Output voltage DC 0-12V adjustable (accuracy ±0.5%)
Output current DC 0-300A adjustable (accuracy ±1A)
Maximum output power 3.6KW (12V×300A)
Cooling method Forced air cooling (noise ≤60dB)
Control mode Local touch screen + RS485 remote control
Protection functions Overvoltage/overcurrent/short circuit/overheating protection
Working environment -10°C ~ +50°C, humidity ≤85% RH (without condensation)
Certification standards CE, ISO 9001,

High Frequency LGBT Single Phase 12V 300A DC Power Supply For Plating Rectifier 0


High Frequency LGBT Single Phase 12V 300A DC Power Supply For Plating Rectifier 1Typical Applications
PCB manufacturing: Copper filling in through-holes, gold plating on gold fingers.
Jewelry electroplating: Precision plating on rings/necklaces.
Laboratory research and development: Verification of small-batch electrolysis processes.
Electronic components: Tin plating on connectors, silver plating on lead frames.


Why Choose This Rectifier?
✔ Strong Compatibility: With 220V single-phase input, there is no need to modify the power grid, and it can be used immediately after being plugged in.
✔ Precise Control: It meets the requirements of micrometer-level electroplating processes.
✔ Easy Maintenance: It has a modular design, and key components (such as IGBT) can be quickly replaced.

Tags:

dc rectifier for electroplating

plating power supply

electroplating rectifier
