Electroplating Power Supply

12V 300A 220V CC/CV 3.6KW Single Phase Power Supply Pure DC DP-Control Electroplating Rectifier

All Category

Electrocoagulation Power Supply

High Frequency Switching Power Supply

12V 300A 220V CC/CV 3.6KW Single Phase Power Supply Pure DC DP-Control Electroplating Rectifier

Brand Name:	Xingtongli
Model Number:	GKD12-300CVC
MOQ:	1pcs
Price:	500-600$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

300A Electroplating Rectifier

220V Electroplating Rectifier

12V Electroplating Rectifier

Product Description

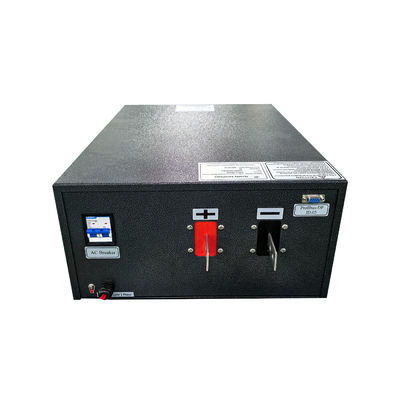

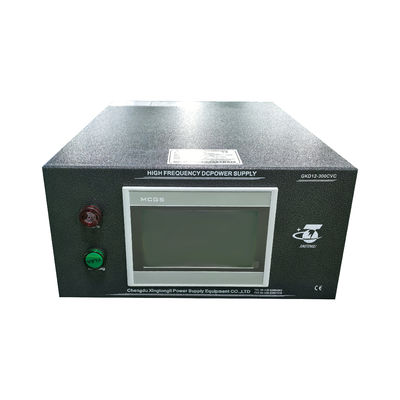

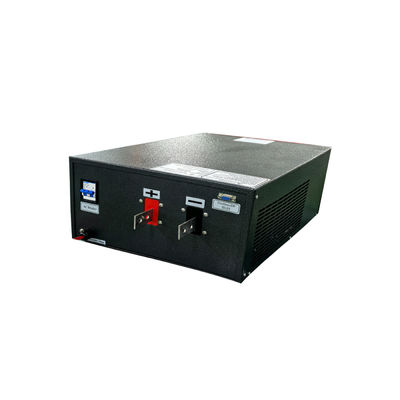

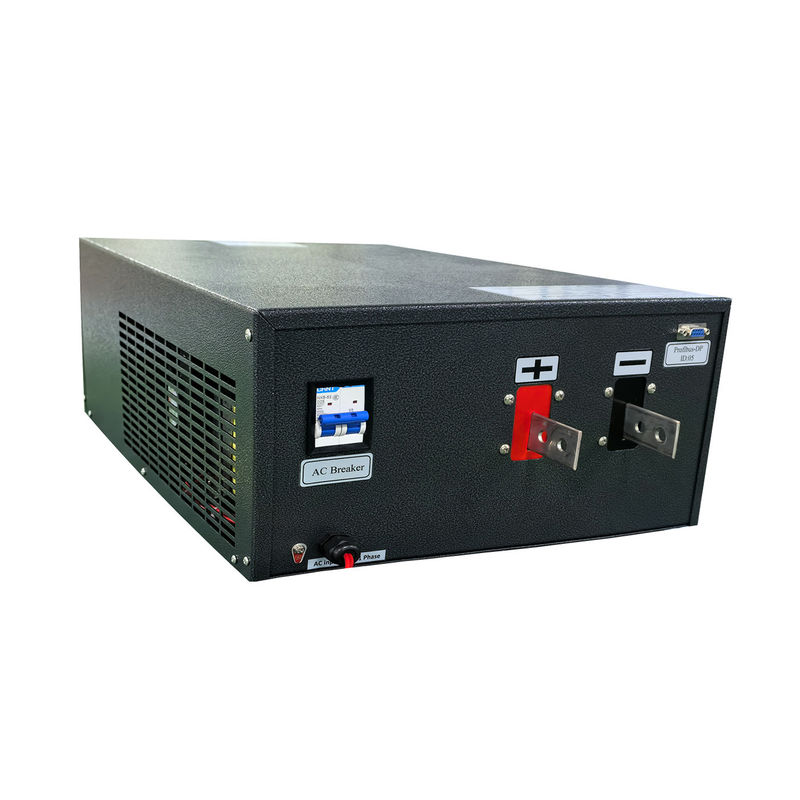

The 12V 300A 220V CC/CV 3.6KW Single Phase Power Supply Pure DC DP-Control Electroplating Rectifier is a compact DC power supply designed for small-scale electroplating lines, laboratory R&D, and repair workshops. Utilizing high-frequency IGBT technology, it supports intelligent switching between Constant Current (CC) and Constant Voltage (CV) modes. Compatible with 220V single-phase AC input, it delivers a DC output of 12V/300A (3.6kW), ideal for applications such as small-batch electroplating, electrolytic cleaning, and metal restoration.

Technical Parameters

Input Power: Single-phase 220V AC ±15%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-300A continuously adjustable
- Power: Max. 3.6kW (12V × 300A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (high-frequency IGBT soft-switching technology)
Cooling System: Intelligent temperature-controlled fan (low noise, load-adaptive speed adjustment)
Communication Interface: DP interface (RS485, Modbus protocol support)
Protection Features: Over-voltage, over-current, short-circuit, overheating, input surge protection
Control Modes: Local keypad control / remote communication control (auto CC/CV switching)
Display Interface: LCD screen (real-time voltage, current, fault codes)
Operating Temperature: -10℃ to +45℃
Protection Rating: IP20 (basic dust protection)

Typical Applications

Small-Batch Electroplating: Gold/silver plating for jewelry, nickel plating for hardware accessories.
Electrolytic Repair: Mold surface restoration, metal part derusting.
Laboratory Research: Electrochemical experiments, power supply for small electrolytic cells.
Vocational Training: Electroplating process teaching equipment for technical institutes.
