12V/2500A 415V 3-Phase IGBT AH Meter & Timer Relay Electroplating Rectifier

All Category

Electrocoagulation Power Supply

High Frequency Switching Power Supply

12V/2500A 415V 3-Phase IGBT AH Meter & Timer Relay Electroplating Rectifier

Brand Name:	Xingtongli
Model Number:	GKD12-2500CVC
MOQ:	1pcs
Price:	1450-1750$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Product Description

The 12V/2500A 415V 3-Phase IGBT AH Meter & Timer Relay Electroplating Rectifier is a high-power precision DC power supply designed for large-scale industrial electroplating, electrolytic metallurgy, and continuous production lines. Utilizing high-frequency IGBT inversion technology, it supports intelligent switching between Constant Current (CC) and Constant Voltage (CV) modes. Compatible with 415V three-phase AC input, it delivers a DC output of 12V/2500A (30kW) to meet high-intensity electroplating, rapid metal deposition, and high-current electrolysis requirements. Equipped with an Ampere-Hour Meter (AH Meter) and a programmable timer relay, it ensures precise control of plating charge and process duration. Combined with multi-layer protection and communication capabilities, this rectifier is ideal for demanding applications such as automotive component plating, PCB copper plating, and continuous electrolytic production lines.

Technical Parameters

Input Power: Three-phase 415V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-2500A continuously adjustable
- Power: Max. 30kW (12V × 2500A)
Control Accuracy:
- Voltage regulation: ±1%
- Current regulation: ±1%
- AH Meter error: ≤0.5%
Efficiency: ≥89% (IGBT high-frequency soft-switching technology)
Display & Operation:
- - 7-inch touchscreen (real-time voltage, current, cumulative AH, temperature)

Fault alarm log (stores up to 100 recent records)

Protection Features:

Over-voltage, over-current, short-circuit, phase loss, low water pressure, overheating

Operating Environment:
- Temperature: -10℃ to +50℃
Humidity: ≤90% RH (non-condensing)

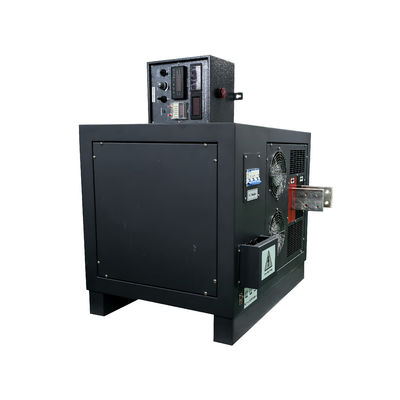

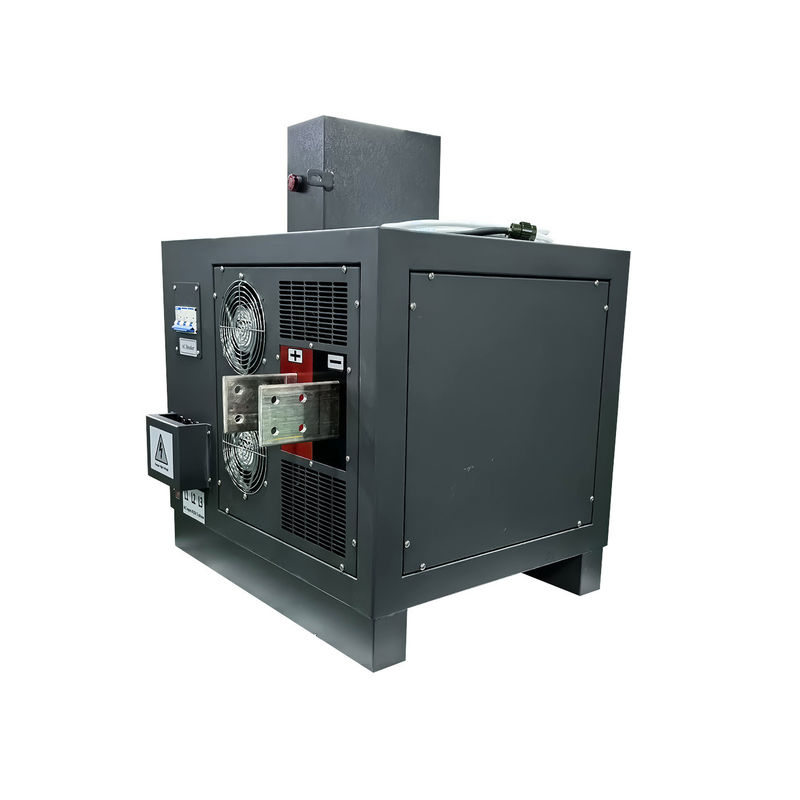

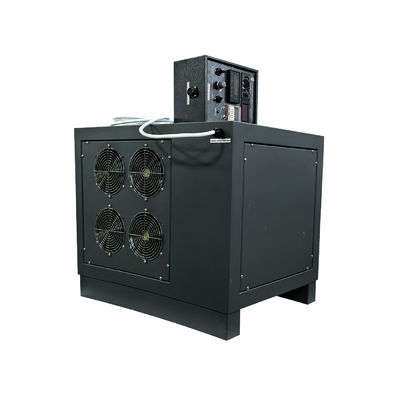

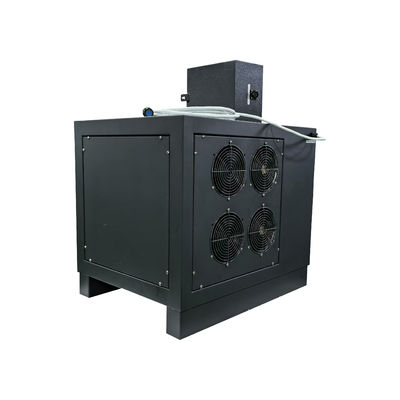

12V/2500A 415V 3-Phase IGBT AH Meter & Timer Relay Electroplating Rectifier 1

Typical Applications

- Heavy-Duty Electroplating: Automotive wheel chrome plating, large hardware zinc/nickel plating.
- PCB Manufacturing: High-precision circuit board copper/gold plating.
- Electrolytic Metallurgy: Copper foil electrolysis, precious metal refining.
- Continuous Production: 24/7 automated electroplating lines.
