High-Performance 12V 4000A Electroplating Rectifier – DC Power for Industrial Applications

Brand Name:	Xingtongli
Model Number:	GKD12-4000CVC
MOQ:	1pcs
Price:	2010-2680$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Product Description

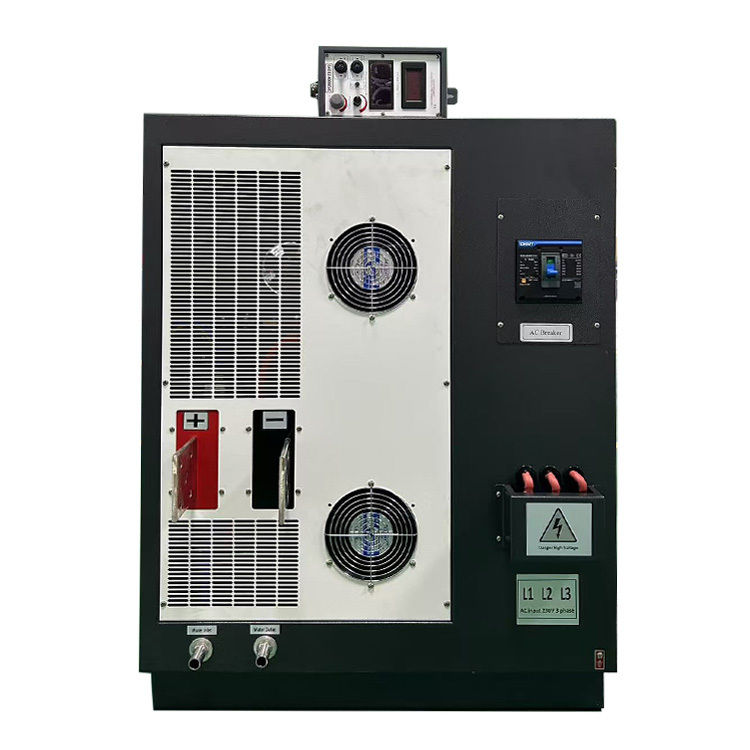

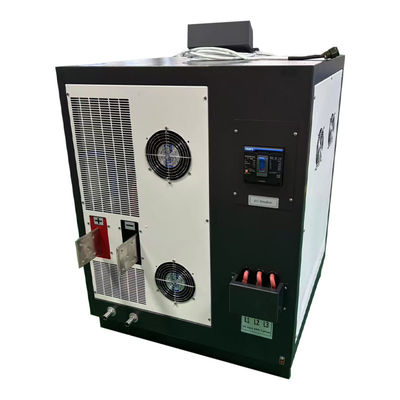

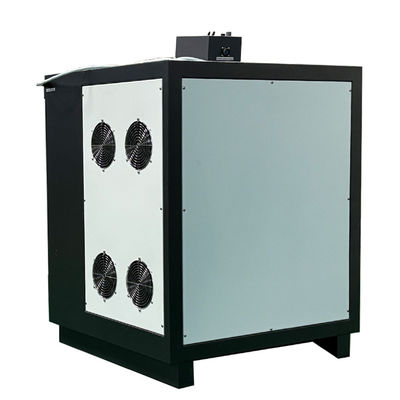

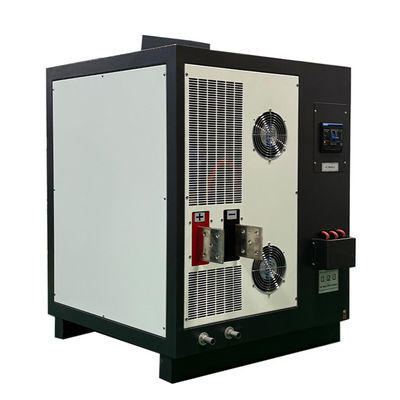

The 12V 4000A 380V CC/CV 48KW Three-Phase Power Supply Pure DC DP-Control Electroplating Rectifier is a robust DC power supply designed for large-scale electroplating lines, industrial applications, and high-demand environments. Using advanced high-frequency IGBT technology, it intelligently switches between Constant Current (CC) and Constant Voltage (CV) modes. Compatible with 230V three-phase AC input, it provides a DC output of 12V/4000A (48KW), making it ideal for heavy-duty electroplating, electrolytic cleaning, and metal restoration applications.

Technical Parameters

Input Power: Three-phase 230V AC ±15%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-4000A continuously adjustable
- Power: Max. 48kW (12V × 4000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (high-frequency IGBT soft-switching technology)
Cooling System: Intelligent temperature-controlled fan (low noise, load-adaptive speed adjustment)
Communication Interface: DP interface (RS485, Modbus protocol support)
Protection Features: Over-voltage, over-current, short-circuit, overheating, input surge protection
Control Modes: Local keypad control / remote communication control (auto CC/CV switching)
Display Interface: LCD screen (real-time voltage, current, fault codes)
Operating Temperature: -10℃ to +45℃
Protection Rating: IP20 (basic dust protection)

Typical Applications

Small-Batch Electroplating: Gold/silver plating for jewelry, nickel plating for hardware accessories.
Electrolytic Repair: Mold surface restoration, metal part derusting.
Laboratory Research: Electrochemical experiments, power supply for small electrolytic cells.
Vocational Training: Electroplating process teaching equipment for technical institutes.
