12v 200a High-efficiency Electroplating Rectifier, Voltage And Current Stabilizing Programmable Power Supply

All Category

Electrocoagulation Power Supply

High Frequency Switching Power Supply

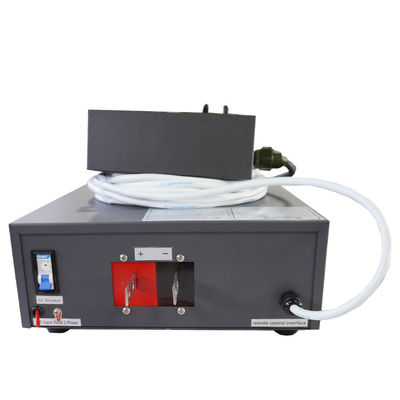

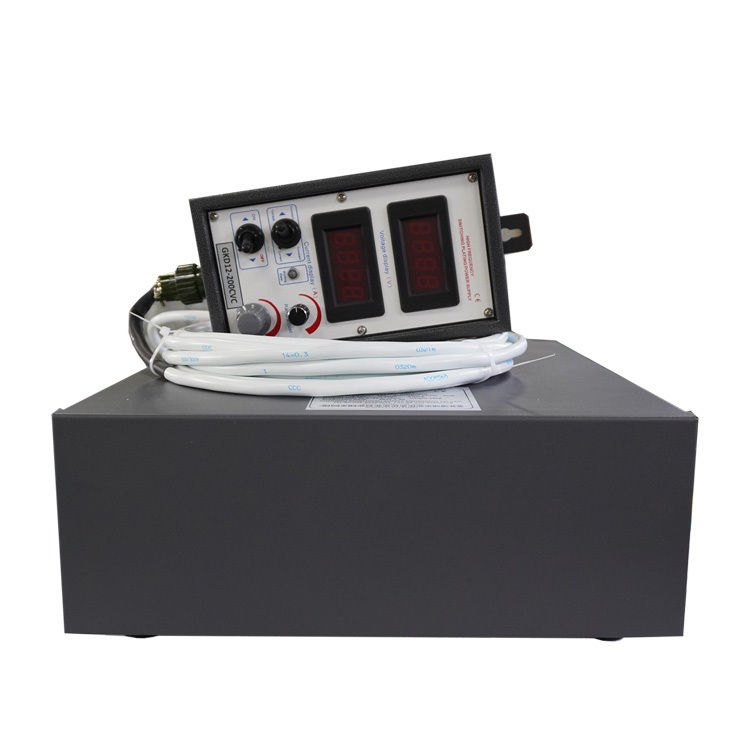

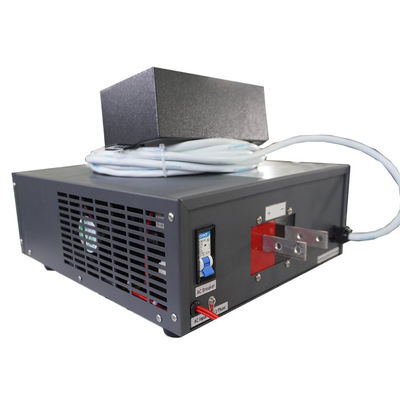

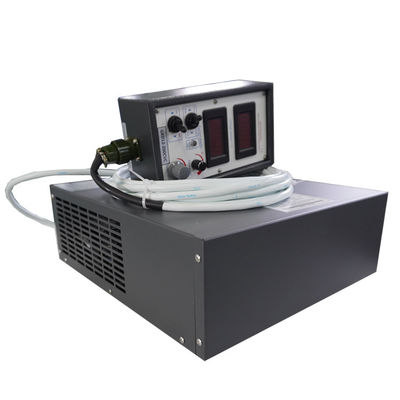

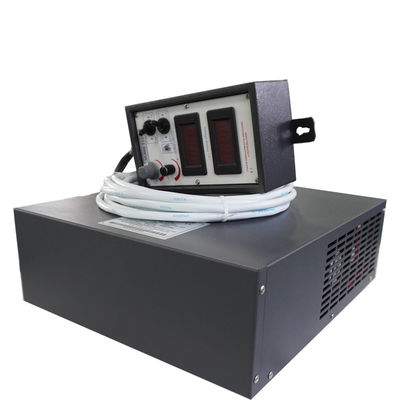

12v 200a High-efficiency Electroplating Rectifier, Voltage And Current Stabilizing Programmable Power Supply

Brand Name:	Xingtongli
Model Number:	GKD12-200CVC
MOQ:	1pcs
Price:	440-590$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Product Description

This high-efficiency 12V 200A electroplating rectifier is designed for stable and precise DC power output in surface finishing applications. With advanced control technology, it ensures consistent current delivery, low ripple, and high reliability. Ideal for small to medium-scale electroplating operations, it features overcurrent protection, digital display, and optional remote control via RS485.

Technical Parameters

Input Power: Single-phase 220V AC ±15%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-200A continuously adjustable
- Power: Max. 2.4kW (12V × 200A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (high-frequency IGBT soft-switching technology)
Cooling System: Intelligent temperature-controlled fan (low noise, load-adaptive speed adjustment)
Communication Interface: DP interface (RS485, Modbus protocol support)
Protection Features: Over-voltage, over-current, short-circuit, overheating, input surge protection
Control Modes: Local keypad control / remote communication control (auto CC/CV switching)
Display Interface: LCD screen (real-time voltage, current, fault codes)
Operating Temperature: -10℃ to +45℃
Protection Rating: IP20 (basic dust protection)

Typical Applications

Small-Batch Electroplating: Gold/silver plating for jewelry, nickel plating for hardware accessories.
Electrolytic Repair: Mold surface restoration, metal part derusting.
Laboratory Research: Electrochemical experiments, power supply for small electrolytic cells.
Vocational Training: Electroplating process teaching equipment for technical institutes.
