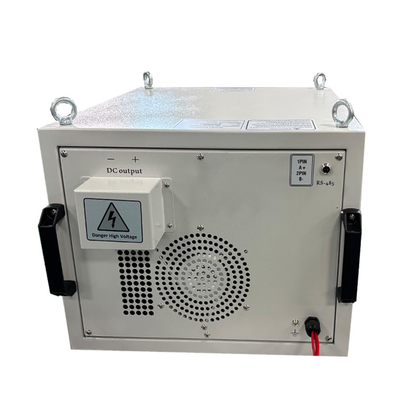

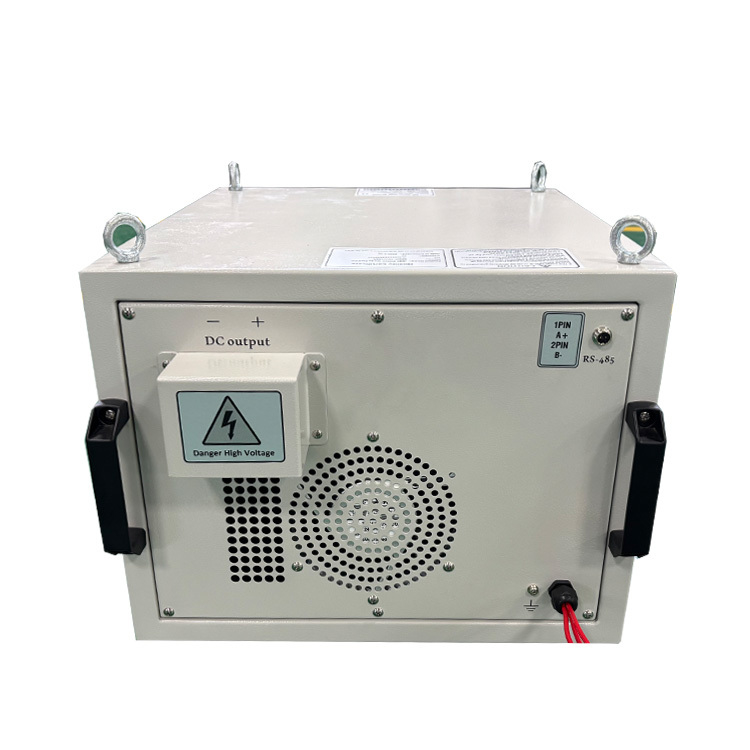

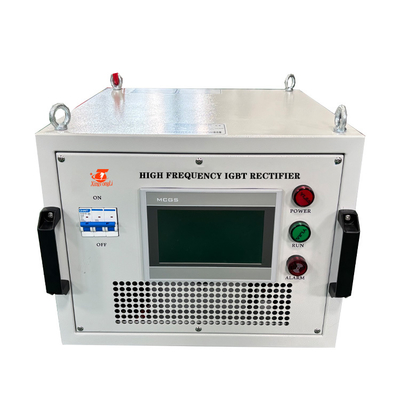

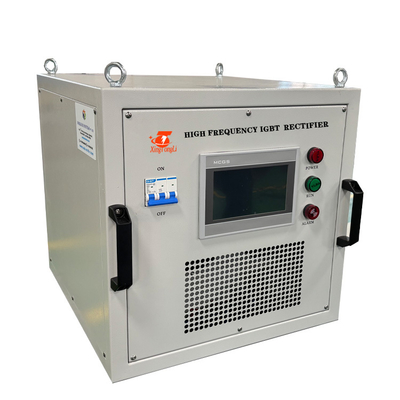

60V 75A Three-phase Plating Rectifier High Frequency Switch Mode DC Power Supply

All Category

Electrocoagulation Power Supply

High Frequency Switching Power Supply

60V 75A Three-phase Plating Rectifier High Frequency Switch Mode DC Power Supply

Brand Name:	Xingtongli
Model Number:	GKD60-75CVC
MOQ:	1pcs
Price:	530-710$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Product Description

The 60V 75A high-frequency switch mode rectifier is built for applications like electroplating, electrolysis, and water treatment. It features a 3-phase 415V AC input, stable 60V DC output, and adjustable current up to 75A. Controlled via a PLC with touchscreen interface, it offers high efficiency, low ripple, and multiple protection features such as overvoltage, overcurrent, and phase loss. A compact and reliable choice for precision plating lines.

Technical Parameters

Input Power: Three-phase 415V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-60V continuously adjustable
- Current: DC 0-75A continuously adjustable
- Power: Max. 4.5kW (60V × 75A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (high-frequency IGBT soft-switching technology)
Cooling System: Intelligent temperature-controlled fan (low noise, load-adaptive speed adjustment)
Communication Interface: DP interface (RS485, Modbus protocol support)
Protection Features: Over-voltage, over-current, short-circuit, overheating, input surge protection
Control Modes: Local keypad control / remote communication control (auto CC/CV switching)
Display Interface: LCD screen (real-time voltage, current, fault codes)
Operating Temperature: -10℃ to +45℃
Protection Rating: IP20 (basic dust protection)

Typical Applications

Small-Batch Electroplating: Gold/silver plating for jewelry, nickel plating for hardware accessories.
Electrolytic Repair: Mold surface restoration, metal part derusting.
Laboratory Research: Electrochemical experiments, power supply for small electrolytic cells.
Vocational Training: Electroplating process teaching equipment for technical institutes.
