12V 500A Rectifier with 220V Single-Phase Input — Stable & Efficient DC Power Supply
  • name
  • name
  • name
  • name
  • name

12V 500A Rectifier with 220V Single-Phase Input — Stable & Efficient DC Power Supply

Brand Name: Xingtongli
Model Number: GKD12-500CVC
MOQ: 1pcs
Price: 580-780$/unit
Packaging Details: strong plywood standard exporting package
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ISO9001
Supply Ability:
200 Set/Sets per Month
Highlight:

12V 500A rectifier power supply

,

220V single-phase DC power supply

,

electroplating power supply with warranty

Product Description
12V 500A Rectifier with 220V Single-Phase Input — Stable & Efficient DC Power Supply
This 12V 500A rectifier supports 220V single-phase input, utilizing advanced IGBT technology for stable and efficient DC output. Perfectly suited for electroplating, water electrolysis, and other industrial applications requiring reliable DC power. Compact design with effective cooling ensures long-term, trouble-free operation.
Technical Specifications
  • Input Power: Single-phase 220V AC ±15%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-500A continuously adjustable
    • Power: Max. 6kW (12V × 500A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥90% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)
Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.
Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.

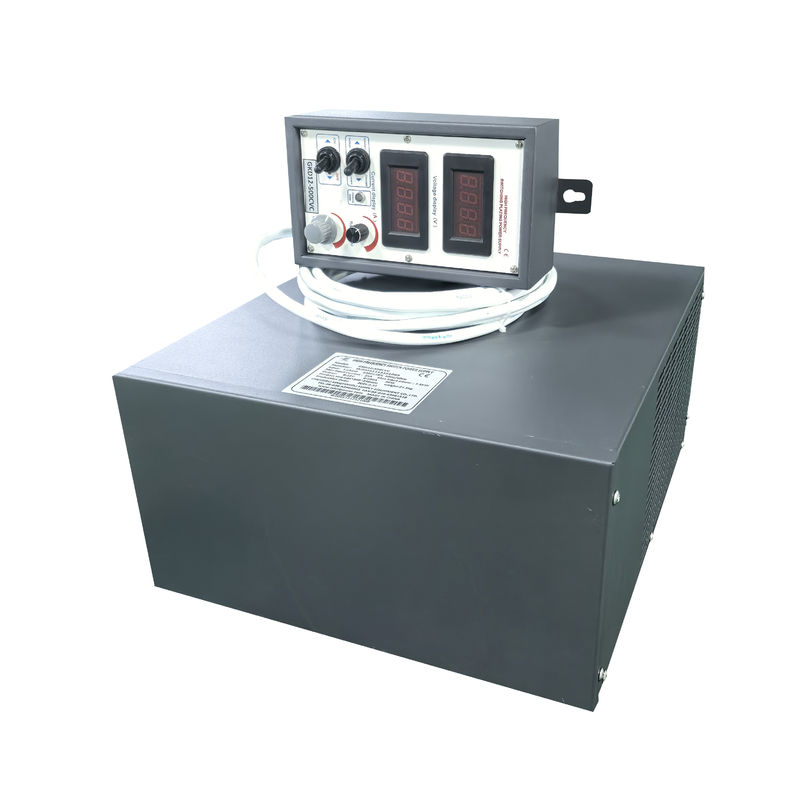

12V 500A Rectifier in industrial setting Close-up of 12V 500A Rectifier control panel
