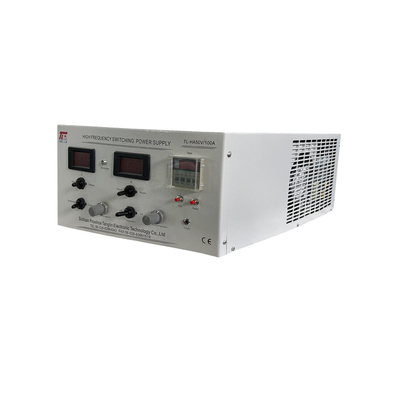

50V 100A Reversing Power Supply Rectifier for Electroplating & Electrolysis

Brand Name:	Xingtongli
Model Number:	GKD12-2000CVC
MOQ:	1pcs
Price:	1575-1775$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Product Description

50V 100A Reversing Power Supply Rectifier for Electroplating & Electrolysis

The 50V 100A reversing power supply provides stable DC output with forward and reverse polarity functions. It is widely used in electroplating, electrolysis, anodizing, and surface treatment applications. Designed for precision and reliability, this unit ensures efficient operation and long service life in industrial environments.

Technical Specifications

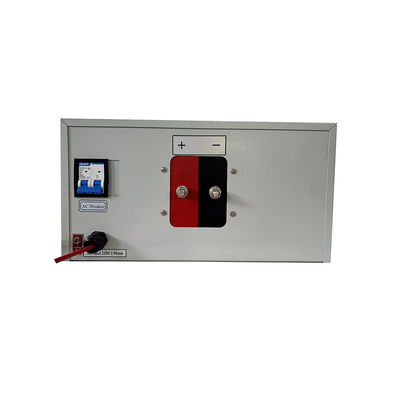

Input Power: Single-phase 220V AC ±15%, 50/60Hz
Output Capability:
- Voltage: DC 0-50V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max. 5kW (50V ×100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥90% (IGBT high-frequency soft-switching technology)

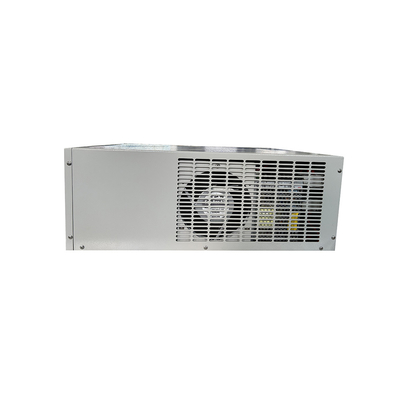

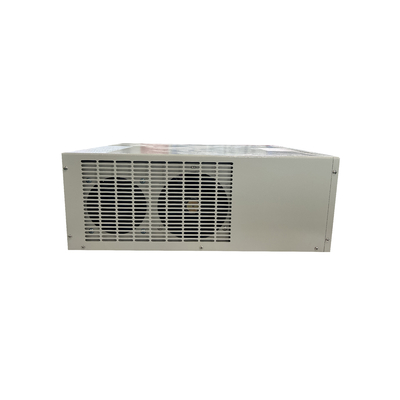

Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)

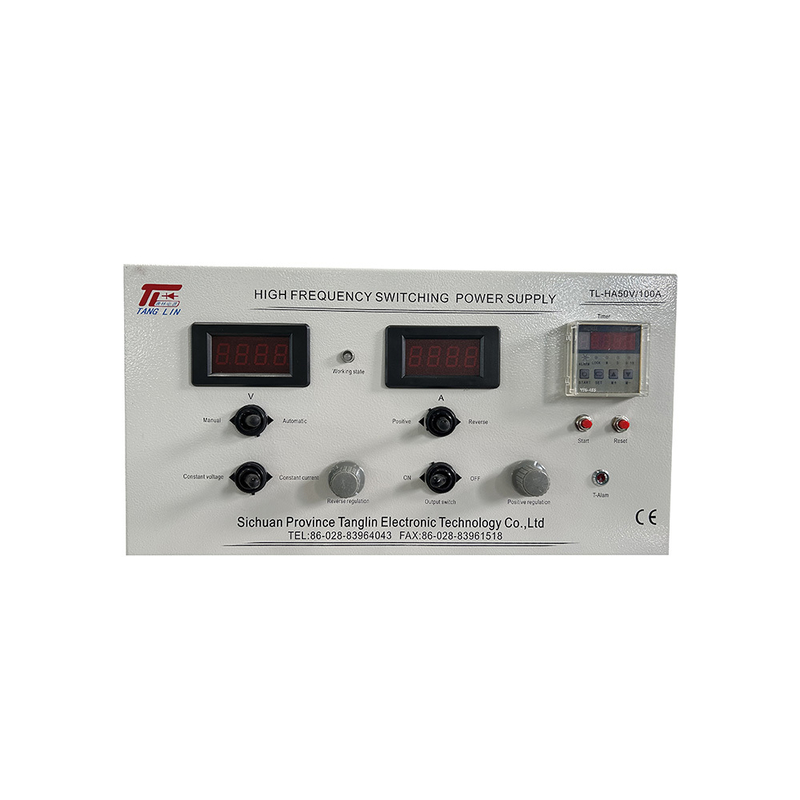

Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
