Electroplating Power Supply
>
High Current 30V 500A DC Power Supply for Metal Finishing

High Current 30V 500A DC Power Supply for Metal Finishing

Brand Name: Xingtongli
Model Number: GKD30-500CVC
MOQ: 1pcs
Price: 1050-1400$/unit
Packaging Details: strong plywood standard exporting package
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE ISO9001
Supply Ability:
200 Set/Sets per Month
Product Description

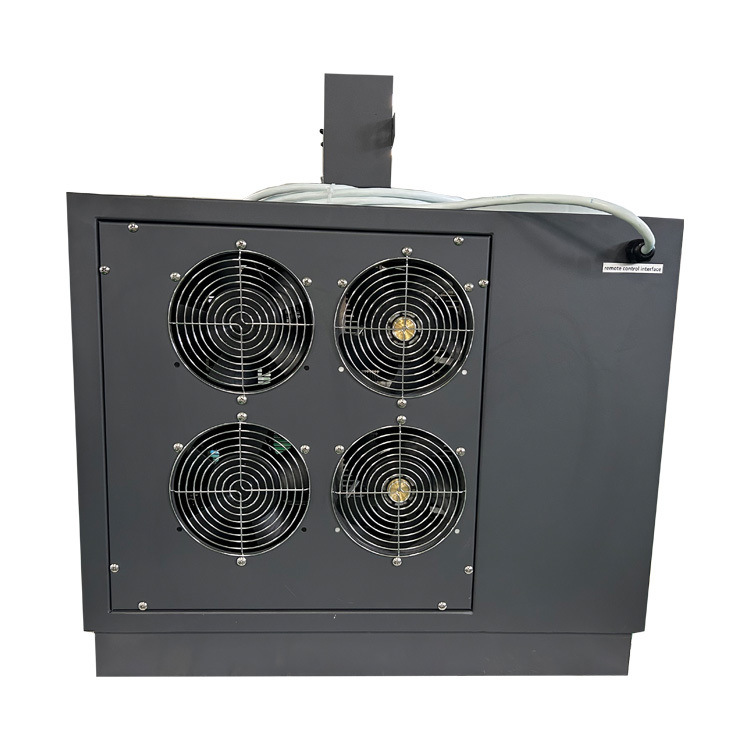

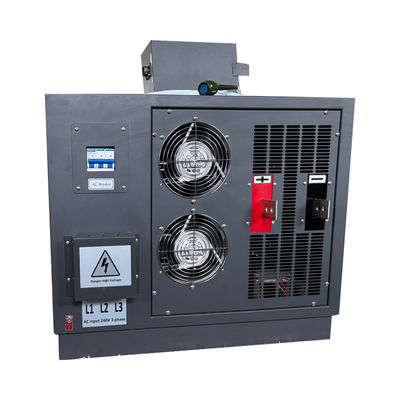

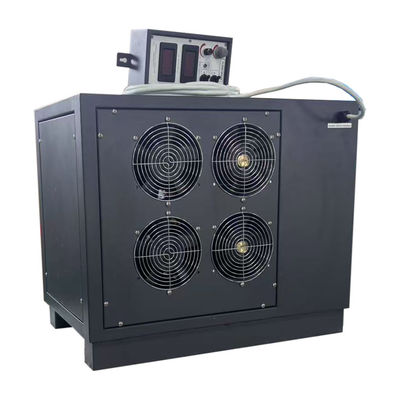

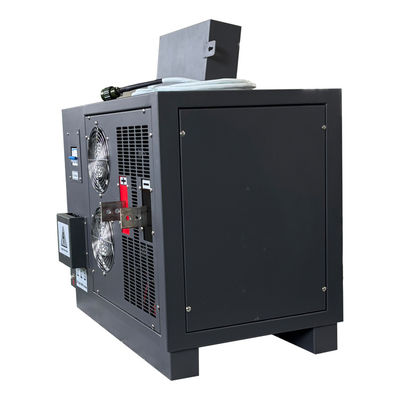

High Current 30V 500A DC Power Supply for Metal Finishing

The 30V 500A rectifier power supply delivers stable and precise DC output, designed for electroplating, anodizing, electrolysis, and other industrial applications. With adjustable voltage and current, high efficiency, and reliable performance, it ensures consistent plating quality and supports continuous production in large-scale operations.



Technical Specifications
  • Input Power: three-phase 240V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-30V continuously adjustable
    • Current: DC 0-500A continuously adjustable
    • Power: Max.15KW (30V ×500A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol);local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • High Current 30V 500A DC Power Supply for Metal Finishing 0
  • High Current 30V 500A DC Power Supply for Metal Finishing 1
