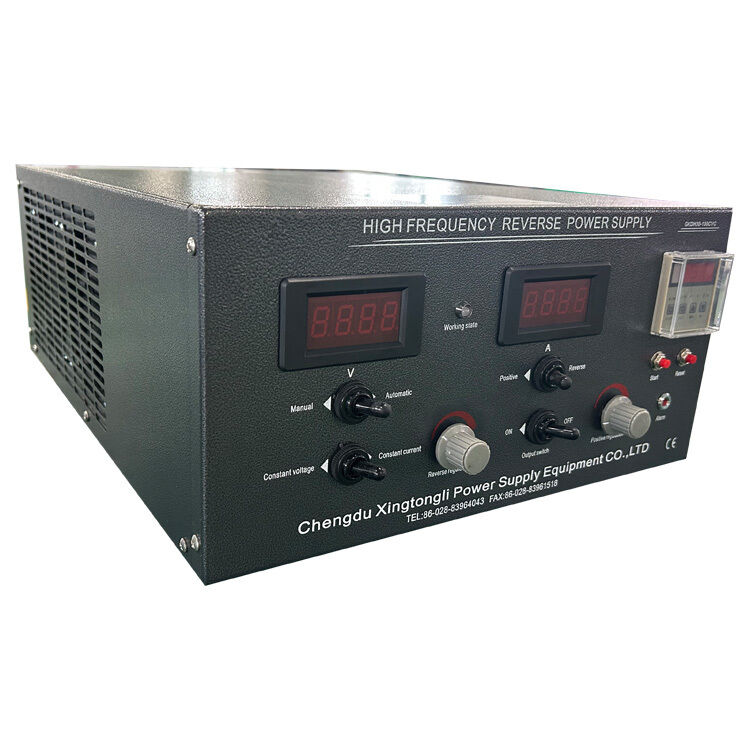

30V 100A Reversing DC Power Supply with 220V Input for Electroplating

Brand Name:	Xingtongli
Model Number:	GKDH30-100CVC
MOQ:	1pcs
Price:	1290-1400$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

30V 100A electroplating power supply

reversing DC power supply 220V

electroplating power supply with warranty

Product Description

30V 100A Reversing DC Power Supply with 220V Input for Electroplating

This 30V 100A reversing DC power supply features automatic polarity reversal for enhanced coating uniformity and improved electroplating efficiency. Designed for 220V AC input, it offers stable, low-ripple DC output suitable for plating, PCB processing, electrolysis, and other industrial applications. With advanced control technology, it supports adjustable reversal timing, smooth switching, and full protection including over-voltage, over-current, over-temperature, and short-circuit protection, ensuring reliable and long-term operation.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-30V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max.3KW (30V *100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
