Electroplating Power Supply

6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input

All Category

Electrocoagulation Power Supply

High Frequency Switching Power Supply

High Voltage Dc Power Supply

Mrs. Una Wang

Unawang@cdxtlpower.com

+8615828663127

Contact Now

6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input

Brand Name:	Xingtongli
Model Number:	GKD6-300CVC
MOQ:	1pcs
Price:	600-700$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

6V 300A electroplating power supply

pure DC jewelry plating power supply

380V AC input power supply

Product Description

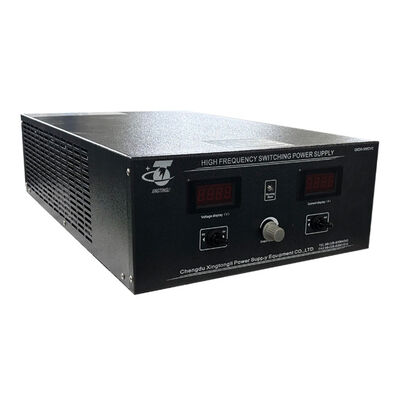

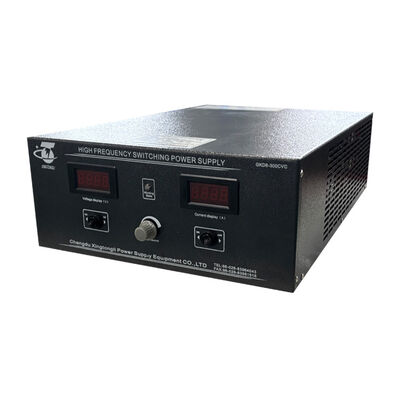

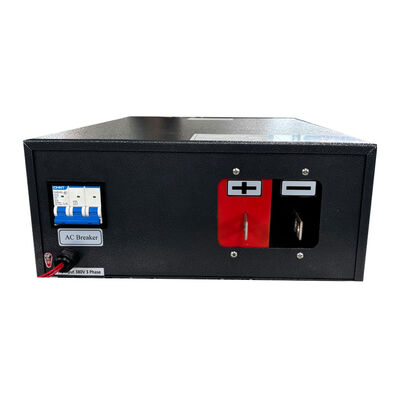

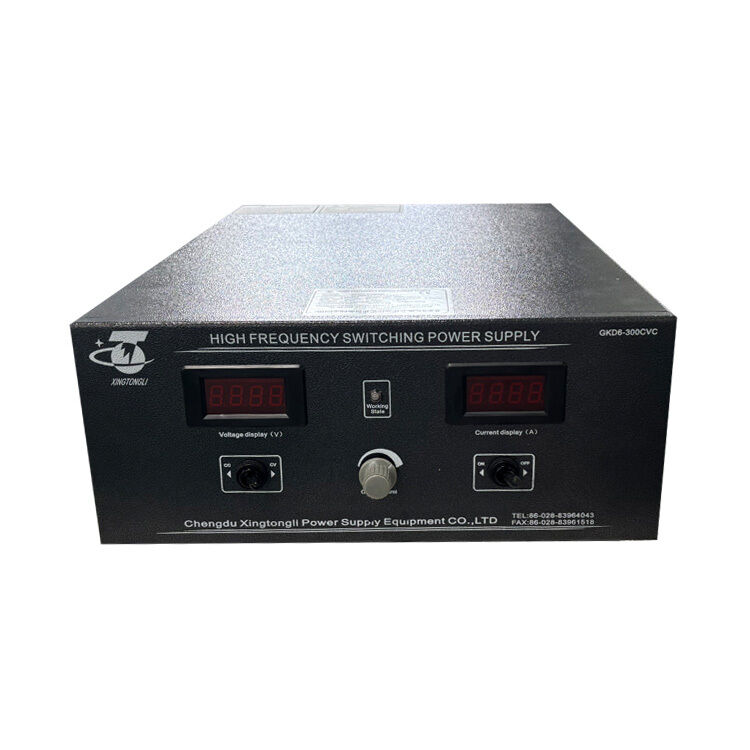

6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input

This 6V 300A pure DC power supply is specially designed for jewelry plating, delivering stable, low-ripple DC output to ensure uniform and high-quality coating of gold, silver, and other precious metals. With 380V three-phase input, it features IGBT-based technology for high efficiency and fast response. Adjustable current and voltage settings, combined with built-in protections including over-voltage, over-current, over-temperature, short-circuit, and grounding protection, make it safe and reliable for continuous plating operations.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-6V continuously adjustable
- Current: DC 0-300A continuously adjustable
- Power: Max.1.8KW (6V *300A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
