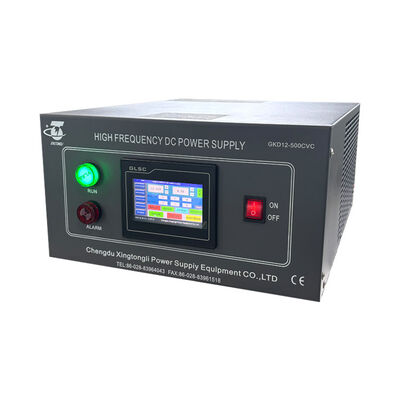

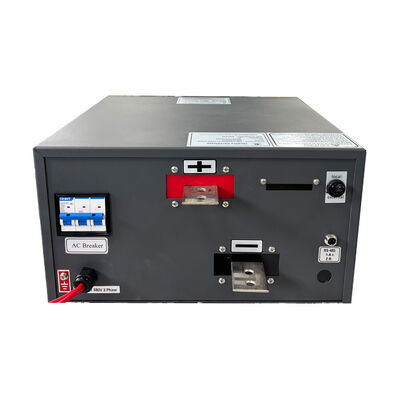

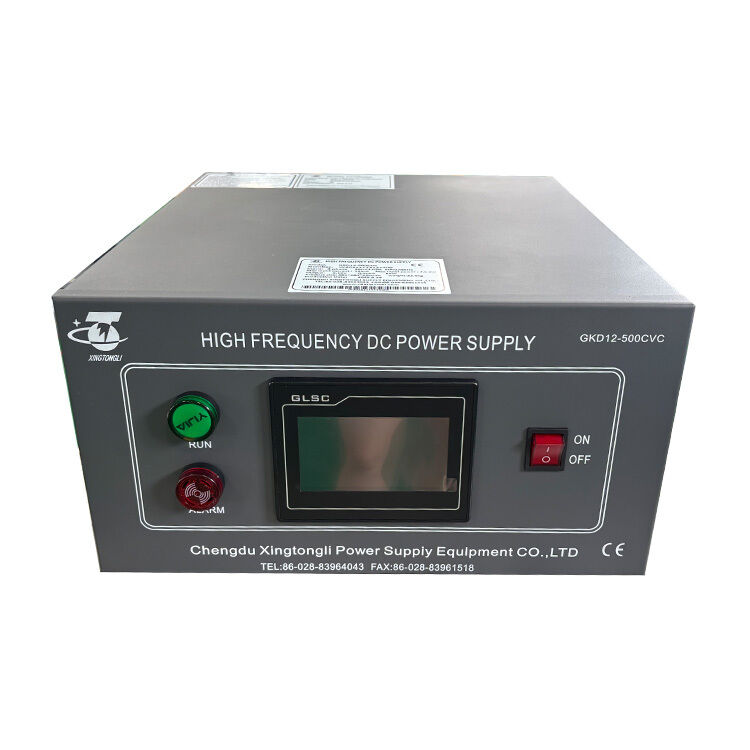

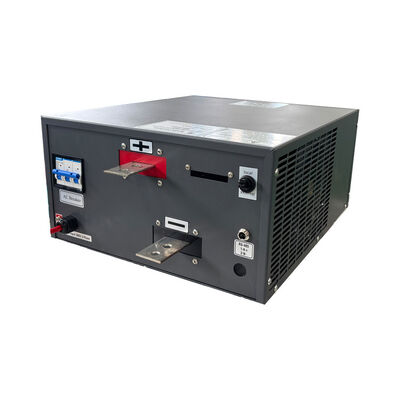

12V 500A Industrial Rectifier for Water Treatment with 380V Three-Phase Input

Brand Name:	Xingtongli
Model Number:	GKD12-500CVC
MOQ:	1pcs
Price:	735-900$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

12V 500A industrial rectifier

water treatment rectifier with 380V input

three-phase electroplating power supply

Product Description

12V 500A Industrial Rectifier for Water Treatment with 380V Three-Phase Input

This 12V 500A industrial rectifier is engineered for professional water treatment applications, including electrocoagulation, wastewater purification, and other electrochemical processes. With a 380V three-phase input, it delivers a stable and low-ripple DC output suitable for long-term continuous operation. Built with high-efficiency power modules and robust protection features, this rectifier ensures reliable performance in demanding industrial environments, making it ideal for EC systems and large-scale water treatment facilities.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-500A continuously adjustable
- Power: Max.6KW (12V ×500A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
