Programmable Electroplating Power Supply 12V 2A High Resolution 1mA Low Ripple for 220V Single Phase
  • name

Programmable Electroplating Power Supply 12V 2A High Resolution 1mA Low Ripple for 220V Single Phase

Detail Information
Product Description
Detail Information
Product Description

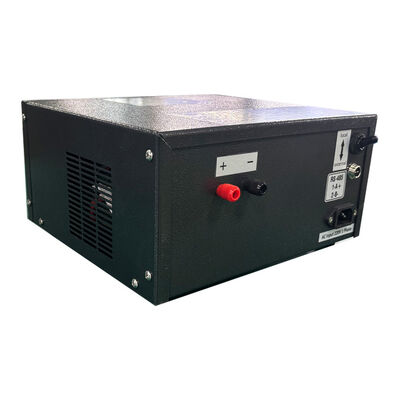

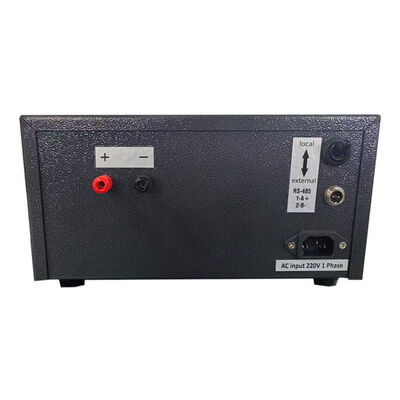

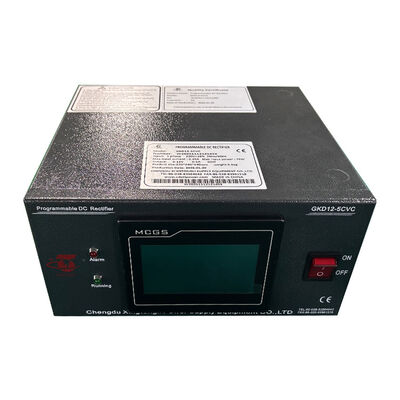

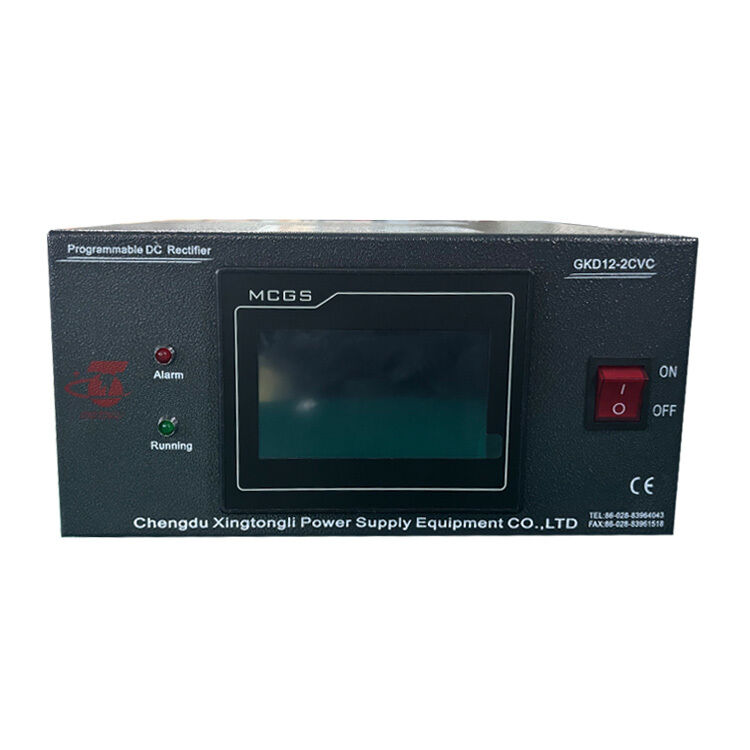

Programmable Electroplating Power Supply 12V 2A High Resolution 1mA Low Ripple for 220V Single Phase

This programmable 12V 2A electroplating power supply is specifically designed for high-precision surface treatment. It operates on a 220V single-phase power supply and boasts a core advantage of 1mA current resolution, enabling fine adjustments in milliampere levels and precise control over plating thickness and quality. The device supports programmable operation, offers stable output, and is well-protected, making it ideal for laboratory research and development, micro-component electroplating, and other demanding precision surface treatment processes.


Technical Specifications
  • Input Power: single-phase 220V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-2A continuously adjustable
    • Power: Max.24W (12V *2A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • Programmable Electroplating Power Supply 12V 2A High Resolution 1mA Low Ripple for 220V Single Phase 0
  • Programmable Electroplating Power Supply 12V 2A High Resolution 1mA Low Ripple for 220V Single Phase 1
