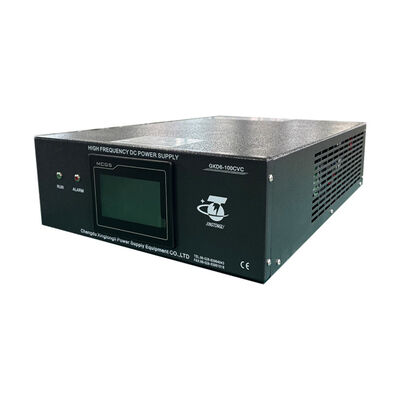

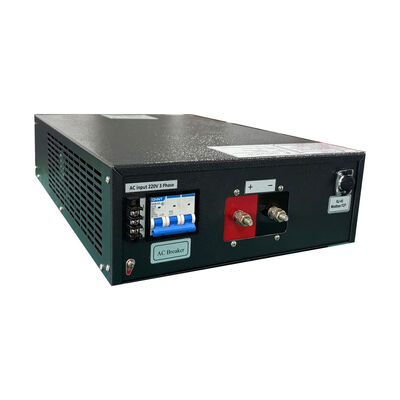

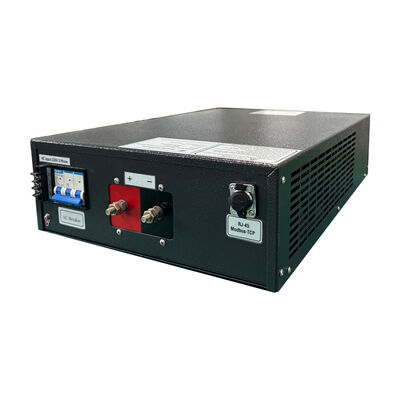

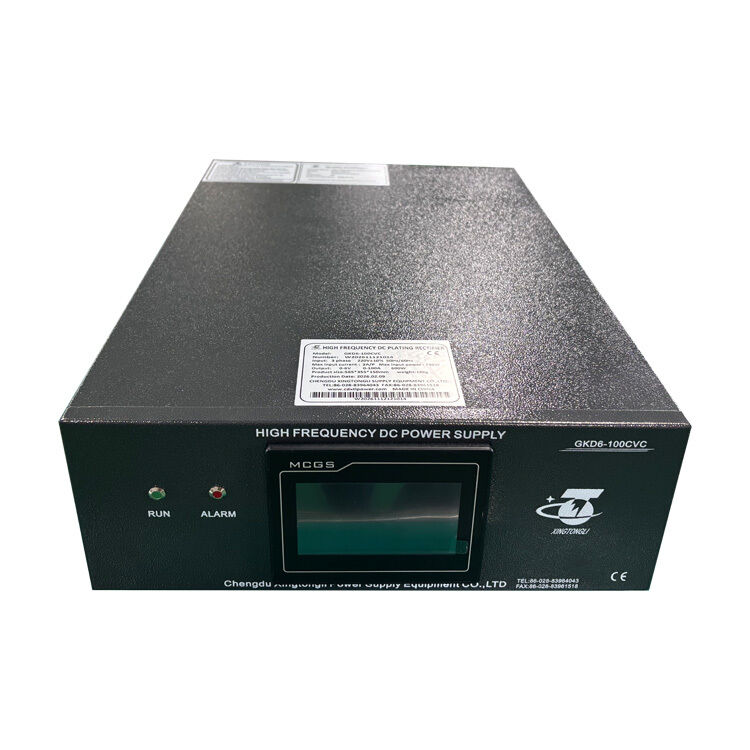

6V 100A IGBT Electroplating Rectifier with PLC HMI Control Low Ripple ≤3% 220V 3 Phase Input

Brand Name:	Xingtongli
Model Number:	GKD6-100CVC
MOQ:	1pcs
Price:	1000-1200$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

6V 100A electroplating rectifier with PLC control

Low ripple electroplating power supply 220V

3 phase IGBT rectifier for electroplating

Product Description

6V 100A IGBT Electroplating Rectifier with PLC HMI Control Low Ripple ≤3% 220V 3 Phase Input

This 6V 100A high-frequency IGBT rectifier is specially designed for electroplating and industrial DC power applications. Equipped with PLC + HMI intelligent control system, it offers precise voltage and current adjustment, stable output, and low ripple ≤3%. The unit supports 220V three-phase input and features CC/CV operation mode, high efficiency, and multiple protection functions, making it suitable for copper, nickel, zinc, chrome plating, anodizing, and laboratory applications.

Technical Specifications

Input Power: three-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-6V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max.600W (6V *100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
