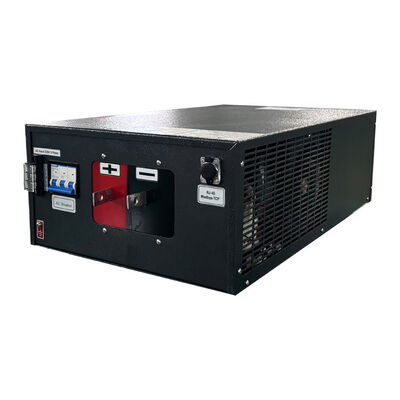

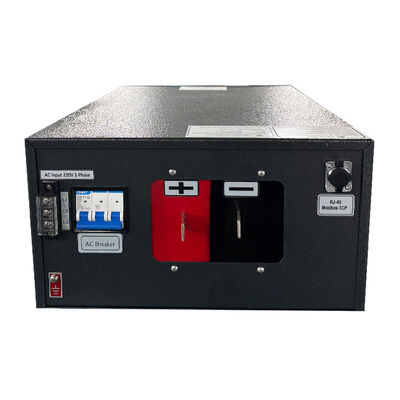

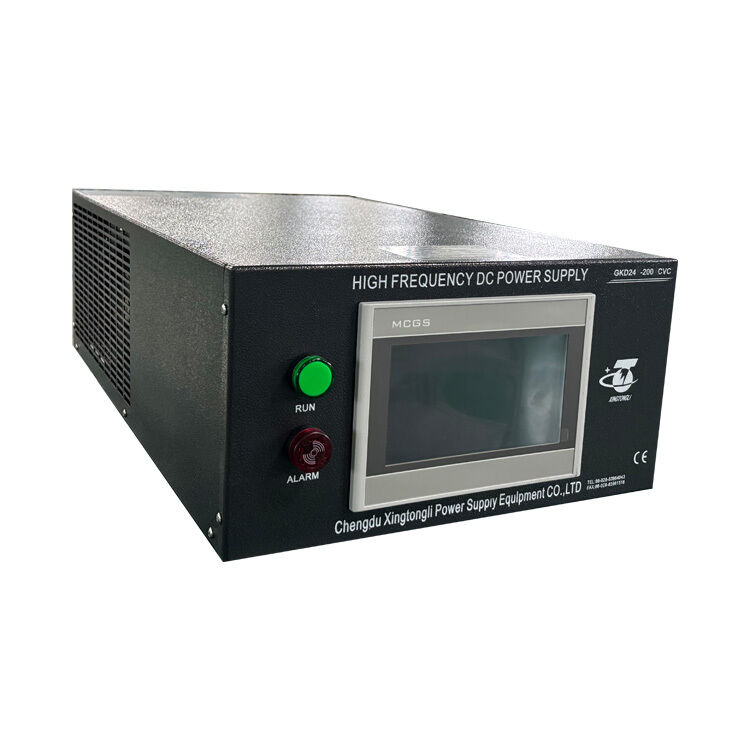

24V 200A Electroplating Rectifier 220V Three Phase PLC HMI Modbus TCP Low Ripple DC Power Supply
  • name
  • name
  • name
  • name

24V 200A Electroplating Rectifier 220V Three Phase PLC HMI Modbus TCP Low Ripple DC Power Supply

Brand Name: Xingtongli
Model Number: GKD24-200CVC
MOQ: 1pcs
Price: 1500-1700$/unit
Packaging Details: strong plywood standard exporting package
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ISO9001
Supply Ability:
200 Set/Sets per Month
Highlight:

24V 200A electroplating rectifier

,

three phase PLC HMI power supply

,

low ripple DC power supply

Product Description

24V 200A Electroplating Rectifier 220V Three Phase PLC HMI Modbus TCP Low Ripple DC Power Supply

This 24V 200A electroplating rectifier is designed for industrial plating applications with 220V three-phase input, PLC + HMI intelligent control, and Modbus TCP communication interface for convenient automation integration. The rectifier provides stable DC output with ripple ≤3%, ensuring high plating quality and reliable operation. Suitable for chrome plating, nickel plating, zinc plating, copper plating, anodizing, and other electroplating processes.

Technical Specifications
  • Input Power: three-phase 220V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-24V continuously adjustable
    • Current: DC 0-200A continuously adjustable
    • Power: Max.4.8KW (24V *200A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 24V 200A Electroplating Rectifier 220V Three Phase PLC HMI Modbus TCP Low Ripple DC Power Supply 0
  • 24V 200A Electroplating Rectifier 220V Three Phase PLC HMI Modbus TCP Low Ripple DC Power Supply 1
