Name: 24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD24-2000CVC
Price: 2,390.00 USD
Availability: InStock

Brand Name:	Xingtongli
Model Number:	GKD24-2000CVC
MOQ:	1pcs
Price:	2200-2580$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

24V 2000A electroplating rectifier

3 phase 415V input power supply

high current DC rectifier industrial

Product Description

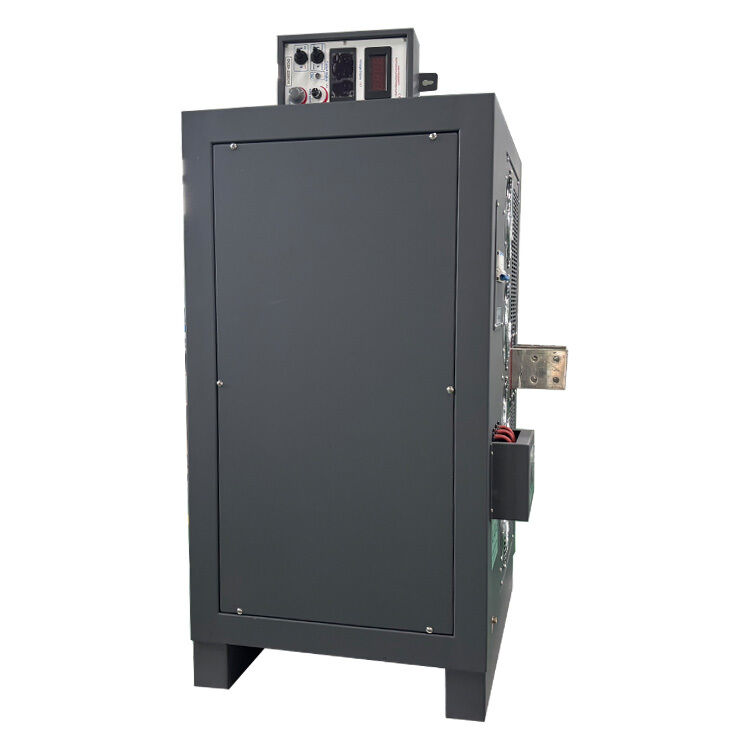

24V 2000A Electroplating Rectifier Power Supply 3 Phase 415V Input High Current DC Rectifier for Industrial Plating

This 24V 2000A electroplating rectifier is designed for high-current DC power applications such as electroplating, anodizing, surface treatment, and industrial processes. With 415V three-phase AC input, it provides stable and reliable DC output with high efficiency and precise current/voltage control. The rectifier supports customized specifications, including output voltage/current, cooling method, control mode, and communication interface to meet different industrial requirements. Built with advanced IGBT switching technology, it features high efficiency, low ripple, and multiple protection functions for safe and continuous operation.

Technical Specifications

Input Power: three-phase 415V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-24V continuously adjustable
- Current: DC 0-2000A continuously adjustable
- Power: Max 48KW (24V *2000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
