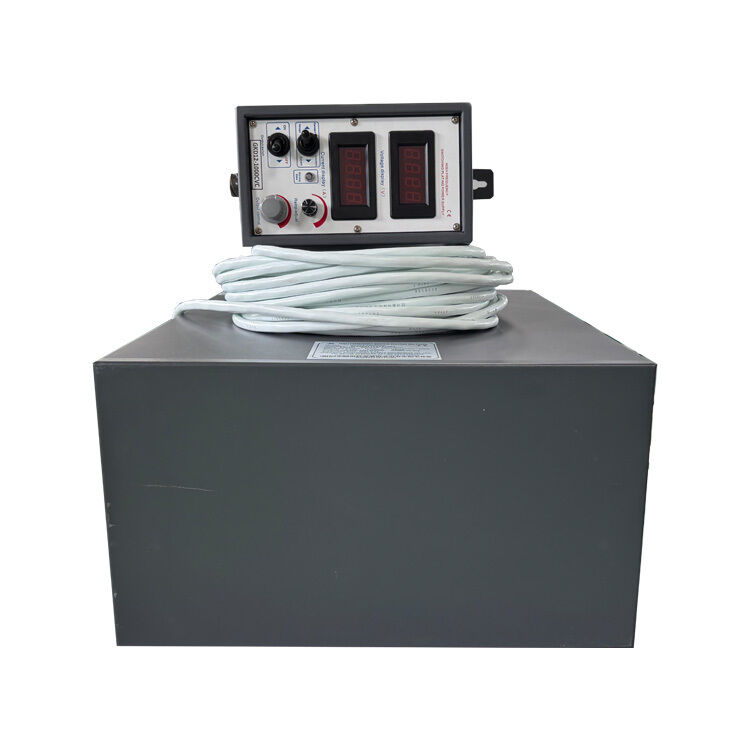

Name: 12V 1000A Industrial Electroplating Rectifier 415V Three Phase AC Input Heavy Duty DC Power Supply for Metal Surface Treatment
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD12-1000CVC
Price: 1,050.00 USD
Availability: InStock

Brand Name:	Xingtongli
Model Number:	GKD12-1000CVC
MOQ:	1pcs
Price:	900-1200$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

12V 1000A electroplating rectifier

415V three phase DC power supply

industrial heavy duty electroplating power supply

Product Description

12V 1000A Industrial Electroplating Rectifier 415V Three Phase AC Input Heavy Duty DC Power Supply for Metal Surface Treatment

Designed for high-current electrochemical applications, this 12V 1000A DC rectifier delivers stable and adjustable power for electroplating, anodizing, and metal finishing processes. Featuring 415V three-phase input, the system provides strong load capability and consistent output performance for demanding production environments. The rectifier adopts advanced switching technology to achieve high efficiency, fast response, and reliable operation. Customized options are available for output parameters, cooling method, control interface, and protection functions to match different plating line requirements.

Technical Specifications

Input Power: three-phase 415V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-1000A continuously adjustable
- Power: Max 12KW (12V *1000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
