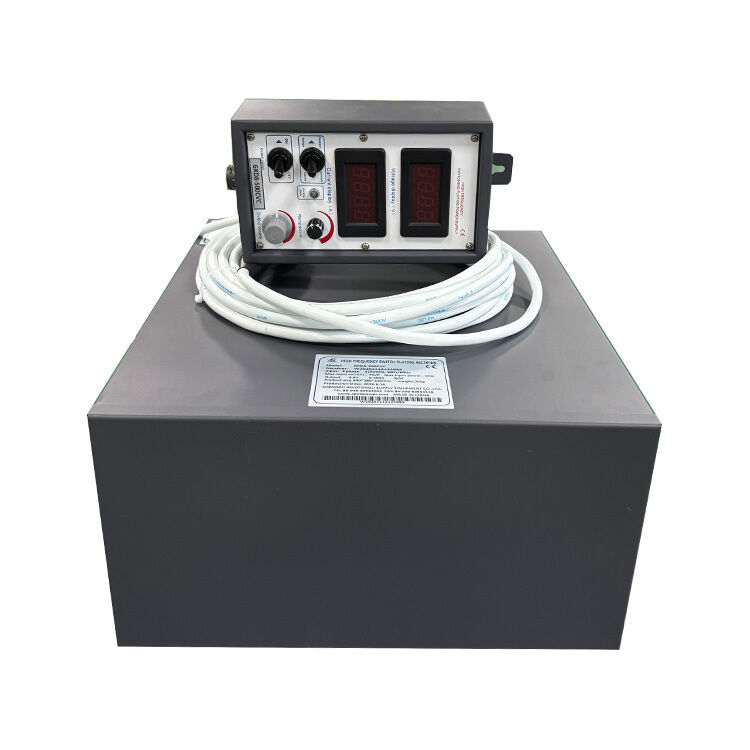

Name: 8V 500A Active Rectifier Power Supply 415V Three Phase Input Energy Efficient DC Supply for Electrochemical Applications
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD8-500CVC
Price: 700.00 USD
Availability: InStock

Brand Name:	Xingtongli
Model Number:	GKD8-500CVC
MOQ:	1pcs
Price:	600-800$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

8V 500A electroplating power supply

415V three phase DC supply

energy efficient rectifier power supply

Product Description

8V 500A Active Rectifier Power Supply 415V Three Phase Input Energy Efficient DC Supply for Electrochemical Applications

This 8V 500A active rectifier is designed to provide clean, stable, and efficient DC power for applications such as electroplating, anodizing, and other industrial electrochemical processes. Using active rectification technology, it improves power factor, reduces harmonic distortion, and enhances overall energy efficiency compared with traditional rectification systems. The unit supports 415V three-phase AC input and offers accurate output regulation, fast dynamic response, and reliable operation under continuous industrial workloads. Customized configurations, including output voltage/current, control methods, cooling solutions, and communication options, are available to meet specific project requirements.

Technical Specifications

Input Power: three-phase 415V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-8V continuously adjustable
- Current: DC 0-500A continuously adjustable
- Power: Max 4KW (8V *500A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
