Name: 12V 500A Electroplating Rectifier 220V Single Phase Input Compact DC Power Supply for Surface Finishing Applications
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD12-500CVC
Price: 775.00 USD
Availability: InStock

Brand Name:	Xingtongli
Model Number:	GKD12-500CVC
MOQ:	1pcs
Price:	650-900$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

12V 500A electroplating rectifier

220V single phase DC power supply

compact electroplating power supply

Product Description

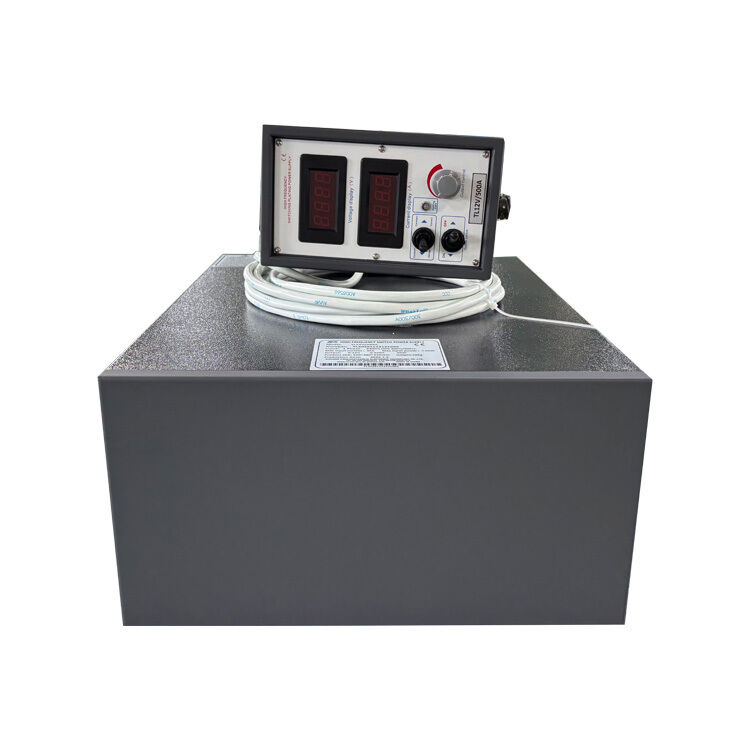

12V 500A Electroplating Rectifier 220V Single Phase Input Compact DC Power Supply for Surface Finishing Applications

This 12V 500A electroplating rectifier is designed for medium-power plating processes that require stable and controllable DC output. Suitable for applications including nickel plating, copper plating, anodizing, and metal surface treatment, it delivers reliable current performance and smooth operation throughout the production cycle. With 220V single-phase AC input, the unit is ideal for workshops and production lines where three-phase power is unavailable. The rectifier supports customized configurations such as output voltage/current, control method, cooling design, timer function, and communication interfaces to meet different process requirements.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-500A continuously adjustable
- Power: Max 6KW (12V *500A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
