Name: 12V 200A Copper Electrolysis Rectifier with CC/CV Control
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD12-200CVC
Price: 590.00 USD
Availability: InStock

Brand Name:	Xingtongli
Model Number:	GKD12-200CVC
MOQ:	1pcs
Price:	530-650$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

12V 200A electroplating power supply

copper electrolysis rectifier with CC/CV

electroplating rectifier with warranty

Product Description

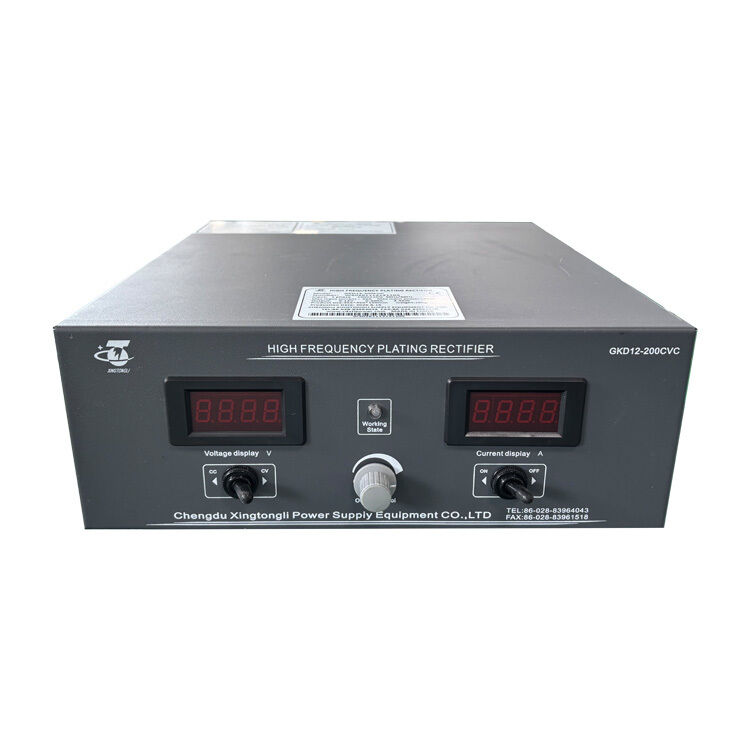

12V 200A Copper Electrolysis Rectifier with CC/CV Control

The 12V 200A copper electrolysis rectifier is designed for reliable DC power supply in copper electrolysis and electrorefining applications. It features 120V single phase AC input, air cooling, and local control for convenient operation. Supporting both constant current and constant voltage modes, the rectifier provides stable and precise output control to meet different electrolysis requirements.

Technical Specifications

Input Power: single-phase 120V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-200A continuously adjustable
- Power: Max 2.4KW (12V *200A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
